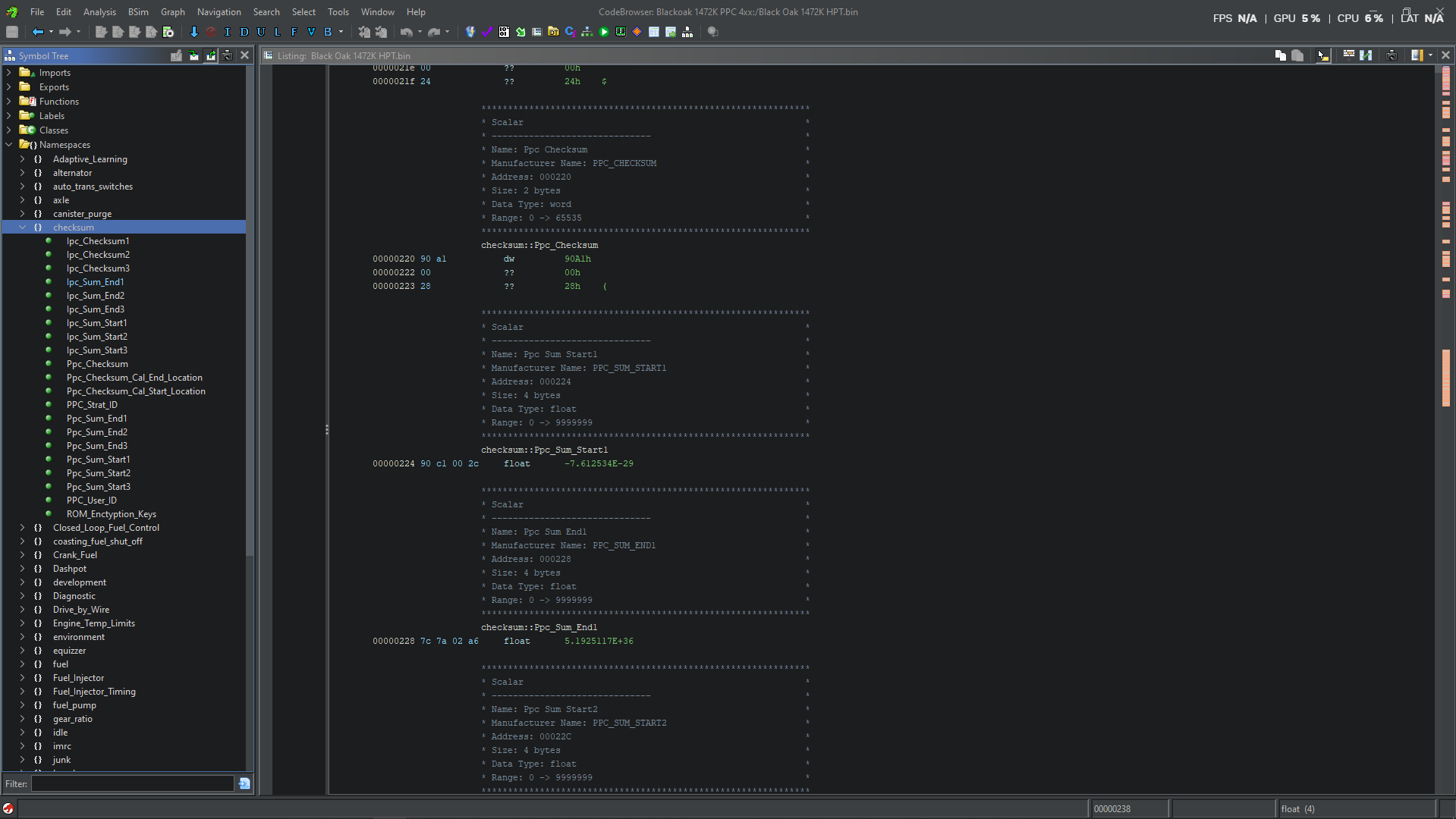

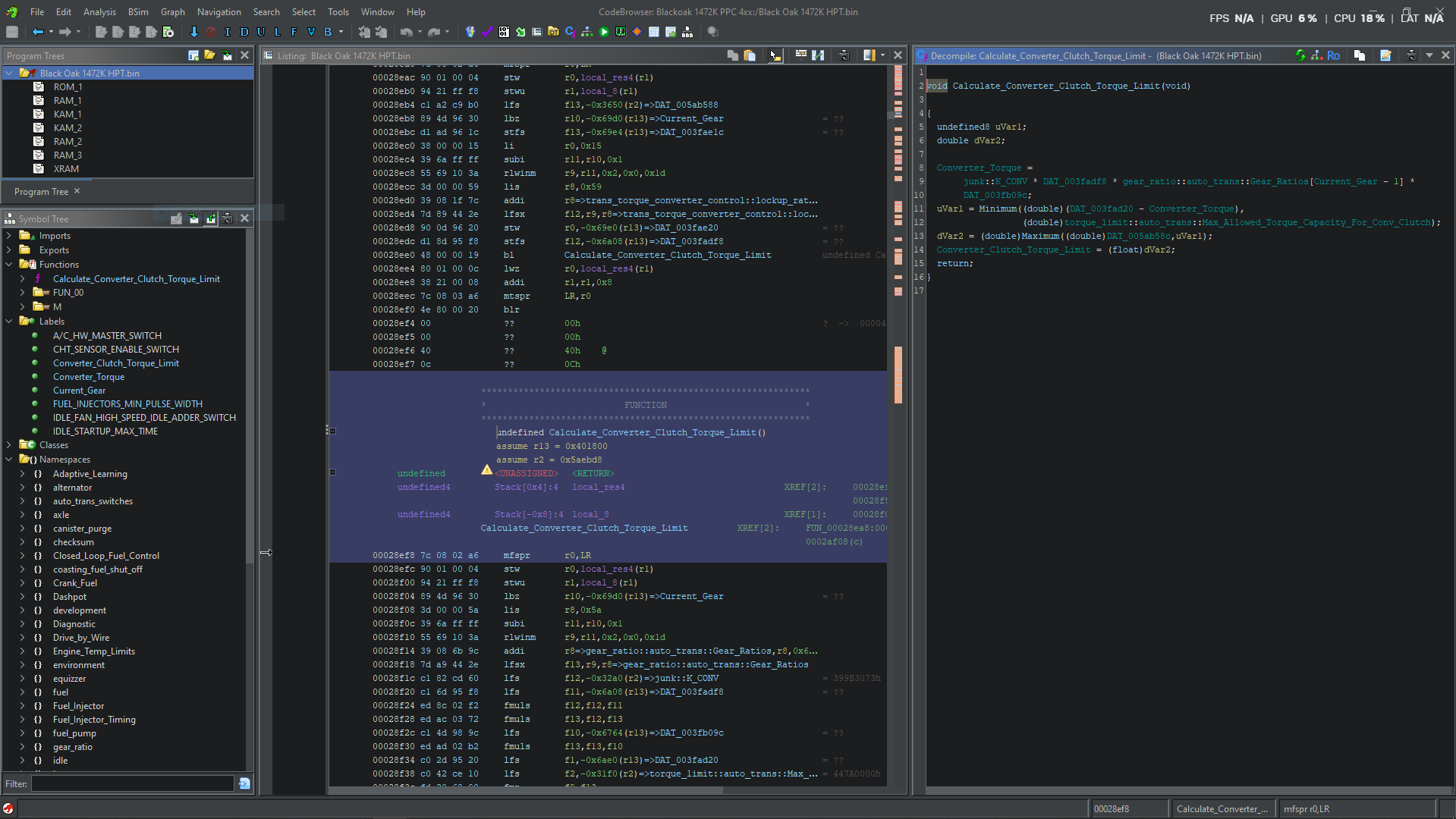

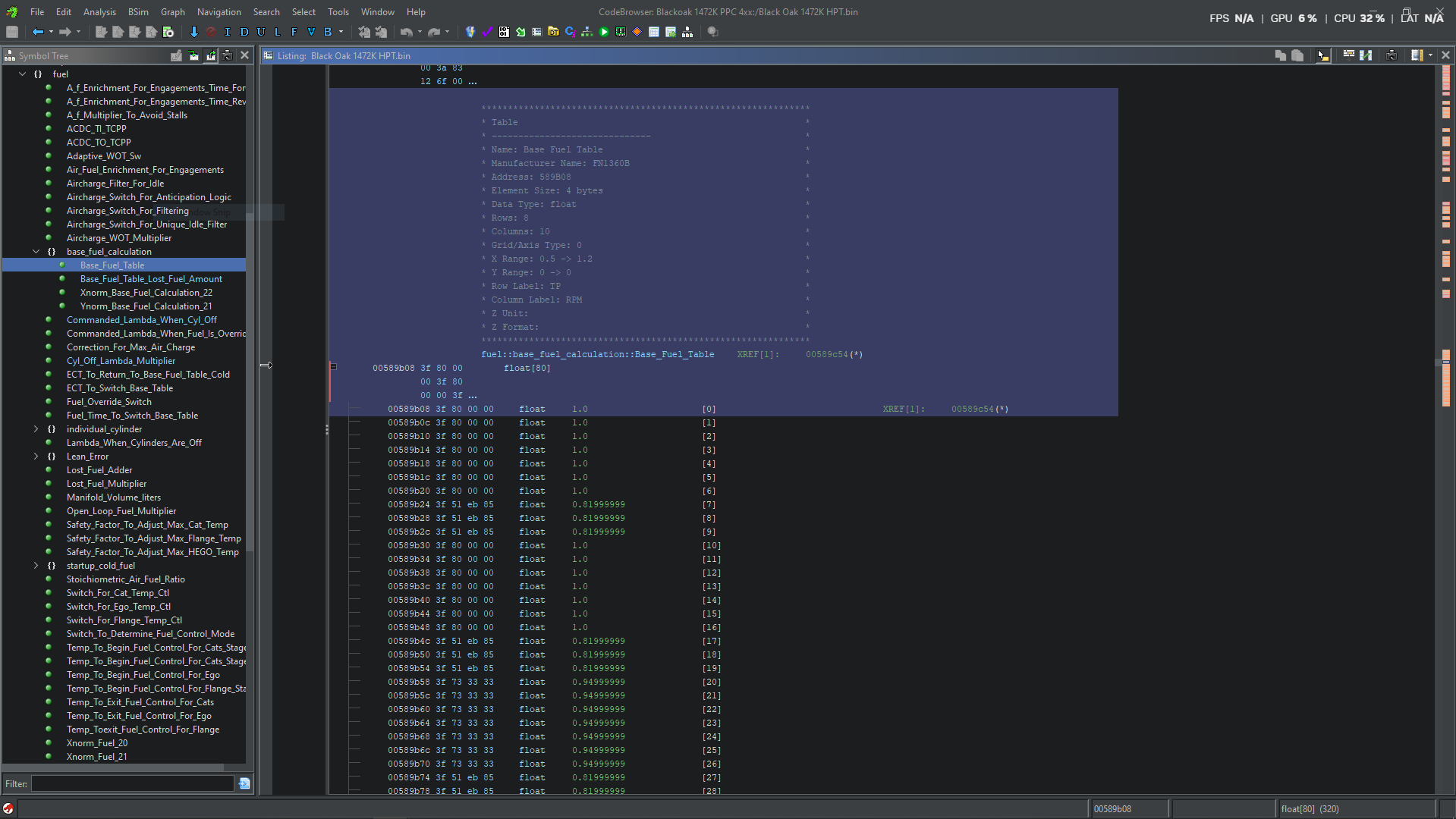

Definition Screenshots
FORD BLACK OAK • 1472K CAN
Professional calibration definition • Version 1.0
A large Ford Black Oak 1472K CAN calibration definition containing nearly 2,000 manually mapped and verified parameters. Built as a reference for tuning, calibration development, definition creation, binary analysis and reverse engineering.
Buy Definition - $600THE DEFINITION
The Ford Black Oak 1472K CAN platform contains a large amount of calibration and control data. Finding and correctly identifying that information from scratch can take a considerable amount of time.
This definition contains nearly 2,000 mapped calibration parameters organized into useful categories. The definition includes scalars, tables, switches, constants, parameters and other identified calibration data.
Every scalar and table in this definition has been manually mapped and checked for accuracy. This was not generated from an automated pattern scan or simply pulled from an existing definition.
Hundreds of hours have gone into researching the Black Oak platform, locating calibration data, identifying parameters, checking addresses and building the definition into something that can actually be used as a foundation for further work.
A large collection of identified Black Oak calibration locations gives you a substantial head start when working with a 1472K PCM binary.
Each scalar and table has been manually located and checked. The goal is accuracy rather than simply generating a large number of automatically detected addresses.
The information can be used as the foundation for creating your own XDF, DAMOS, A2L-style definition, WinOLS project or another format supported by your tuning software.
Use the mapped information while analyzing Black Oak firmware, following code references, identifying calibration structures and understanding how the PCM is organized.
Where identified, the definition contains useful information such as parameter names, data types, dimensions, conversions, scaling and other calibration details.
USE THE DATA YOUR WAY
The definition is provided as calibration data and reference information rather than being tied to one specific tuning application. Use the information to build or work with the format that makes sense for your project.
COMPATIBILITY
Any Ford vehicle and calibration strategy using the Black Oak PCM platform is supported. The definition is not limited to a fixed list of strategy IDs.
DEFINITION PREVIEW
Browse the categories and parameters included in the definition. This public preview shows only the category, manufacturer parameter name and readable name.
| Manufacturer Name | Name |
|---|---|
| FADPT_SW | Fuel Adaptation Switch |
| FN_ADAPTM | Adaptation Delay Period |
| FNADPT_AM | Fuel Air Meter Adaptation Compensation |
| FN_ADPT_GN | Adaptation Gain Cal |
| AFACT2 | Highest Adaptation ACT Allowed During Adaptation |
| AFECT2 | Highest Adaptation ECT Allowed During Adaptation |
| AFACT1 | Lowest Adaptation ACT Allowed During Adaptation |
| AFECT1 | Lowest Adaptation ECT Allowed During Adaptation |
| FN_1327F | Injector Adaptation Mapping |
| ADEFTR | Adaptive Fuel Error Trim |
| MAXADP | Adaptive Compensation Max Allowed Learned |
| MINADP | Adaptive Compensation Min Allowed Learned |
| FN041A | AM To Row Number During Adaptation Fuel |
| AMP_MUL | Amplitude Multiplier During Adaptation |
| DELAMB | Dead Band To Not Adapt |
| FAST_ADPT_GN | Green Engine Adaptation Gain Cal |
| FADPT_DCL_LD | Engine Load To Define Deceleration During Adaptation |
| ADPTP | Max Tp Allowed During Adaptation |
| VECT3 | Min ECT During Adaptation |
| ADPLOD | Min Engine Load Allowed During Adaptation |
| KWUCNT | Number Of Warm Up Counters For Fast Adaptation |
| FADPT_DCL_N | RPM To Define Deceleration During Adaptation |
| KAM_NO_RESET | Switch To Shut Off Kam Fuel Reset |
| DECEL_CELL_SW | Unique Deceleration Kam Cell Switch |
| VECT5 | Warm Up Temperature During Adaptation After Beginning |
| Manufacturer Name | Name |
|---|---|
| TCC_CKT_UP | Converter Solenoid Circuit Test Up Counter |
| TCC_EO_LVL | Converter Solenoid Open Test Limit |
| GR1ERR_LVL | Gear 1 Ratio Deviation Thershold |
| GR2ERR_LVL | Gear 2 Ratio Deviation Thershold |
| GR3ERR_LVL | Gear 3 Ratio Deviation Thershold |
| GR4ERR_LVL | Gear 4 Ratio Deviation Thershold |
| GRV_ERR_TIM | Gear Ratio Validation Duration |
| TID_TOT_MAX | Max Tot For Fault |
| TID_TOT_MIN | Min Tot For Fault |
| MLUS_TST_ENA | MLUS Test Switch |
| PC_EO_OCLVL | P0960 Engine Off Open Circuit Fault Limit |
| LPC_OCOK_LVL | P0960 Open Circuit Fault Limit |
| LPC_OPEN_LVL | P0960 Open Fault Limit |
| SS_CKT_UP | Shift Solenoid Circuit Test Up Counter |
| SS_EO_LVL | Shift Solenoid Open Test Limit |
| TOT_ERRP_LVL | TOT Circuit Fault Limit |
| TOT_EOP_LVL | TOT Circuit Fault Limit Engine Off |
| TRS_EOW_LVL | Transmission Range Sensor Engine Off Deviation Level |
| TRS_ERRW_LVL | Transmission Range Sensor Deviation Level |
| TRS_ERRP_UP | Transmission Range Sensor Deviation Up Counter |
| LPC_OPEN_UP | VFS7 Open Circuit Fault Upcount |
| Manufacturer Name | Name |
|---|---|
| RT_AXLE__A | Axle Ratio |
| NOV_VID_SW | Axle Ratio Switch |
| TIRE_REV__A | Tire Revs Per Mile |
| DISPL_LITERS | Traction Control Switch |
| Manufacturer Name | Name |
|---|---|
| FN821 | Idle RPM Using Low Voltage Level Duration |
| IS_BATV_DR | Max Battery Idle Speed Clamp Drive |
| ALT_V_START | Voltage Level For Idle |
| FN200 | Voltage Level Setpoint |
| LOWVOL_CH | Voltage Threshold For Charging System Healthy State |
| LOWVOL_SL | Voltage Threshold For Low Charging State |
| Manufacturer Name | Name |
|---|---|
| IPC_CHECKSUM1 | Ipc Checksum1 |
| IPC_CHECKSUM2 | Ipc Checksum2 |
| IPC_CHECKSUM3 | Ipc Checksum3 |
| IPC_SUM_END1 | Ipc Sum End1 |
| IPC_SUM_END2 | Ipc Sum End2 |
| IPC_SUM_END3 | Ipc Sum End3 |
| IPC_SUM_START1 | Ipc Sum Start1 |
| IPC_SUM_START2 | Ipc Sum Start2 |
| IPC_SUM_START3 | Ipc Sum Start3 |
| PPC_CHECKSUM | Ppc Checksum |
| PPC_CAL_END1 | Ppc Checksum Cal Ending Location |
| PPC_CAL_START1 | Ppc Checksum Cal Beginning Location |
| PPC_STRATID | Power PC Strategy Identifier |
| PPC_SUM_END1 | Ppc Sum End1 |
| PPC_SUM_END2 | Ppc Sum End2 |
| PPC_SUM_END3 | Ppc Sum End3 |
| PPC_SUM_START1 | Ppc Sum Start1 |
| PPC_SUM_START2 | Ppc Sum Start2 |
| PPC_SUM_START3 | Ppc Sum Start3 |
| PPC_USERID | Power PC User Identifier |
| ROM_ENCRYPTION_KEYS | ROM Encryption Key Set |
| Manufacturer Name | Name |
|---|---|
| JUMP_FRAC | Quantity Of Fraction To Jump To |
| AMP_MULT | Amplitude Multiplier |
| HOLD_TM_PCT | Fraction Of Learned Delay Period Used |
| LAM_MOD_MAX | Max Cal Of Fuel Modulation |
| DYN_LMAX_LL | Max Cal Of Short Term Trim |
| MAX_ROA_L | Max Cal Of Short Term Fuel Trim Lean Direction |
| MAX_ROA_R | Max Cal Of Short Term Fuel Trim Rich Direction |
| LAM_MOD_MIN | Min Cal Of Fuel Modulation |
| DYN_LMIN_UL | Min Cal Of Short Term Trim |
| JUMP_MULT | Multiplier Of Fraction To Jump To |
| FN1352 | Peak To Peak Amplitude For Feedback |
| PTPAMP_FK | Peak To Peak Filter Constant |
| RR_MULT_GAIN | Proportional Gain Cal Multiplier |
| FN039 | Xnorm Feedback Fuel Control 01 |
| FN021 | Ynorm Feedback Fuel Control 01 |
| Manufacturer Name | Name |
|---|---|
| FN052C | Cylinder Air Charge During Crank |
| FNCRKMUL_PIP | Crank Fuel Multiplier With Duration Profile Ignition Pickup |
| FNCRK_LAMB | Crank Lambda |
| FNCRK_LOST | Crank Lost Fueling |
| FNETC_BPADD | Crank Throttle Adder For Barometric Pressure |
| FN2500 | Cranking Ignition Timing |
| CRK_PIP_ECT | CRK Profile Ignition Pickup ECT |
| CRK_SIM_TEMP | CRK SIM Temperature |
| FNETC_CRANK | Electronic Throttle Control Position For Crank |
| FNCRK_DELAYB | Fuel Injection Delay Period Using PIPS |
| CRK_ECT1 | Low ECT Boundary For Sequential Electronic Fuel Injection Fuel During Crank |
| FN384 | RPM To Exit Crank Mode |
| FN755 | Ignition Timing When Exiting Crank |
| CRK_GTC_SW | Switch Allowed For Transient Fuel During Crank |
| CRK_SEFI_SW | Switch To Sequential Electronic Fuel Injection Fuel During Crank |
| FN387XB | Underspeed Fueling Multiplier |
| FN385 | Underspeed To Run RPM |
| CRK_ECT2 | High Side ECT Boundary For Sequential Electronic Fuel Injection Fuel During Crank |
| FN024H | Xnorm Crank Fueling 02 |
| FN022BB | Xnorm Crank Fueling 03 |
| FN023T | Xnorm Crank Fueling 04 |
| FNETC_TCSTRT | Xnorm Crank Fueling 05 |
| FN020E | Ynorm Crank Fueling 02 |
| FN072 | Ynorm Crank Fueling 03 |
| FN024TB | Ynorm Crank Fueling 04 |
| FNETC_FAPERC | Ynorm Crank Fueling 05 |
| Manufacturer Name | Name |
|---|---|
| SPD_AUTO_MIN | Min PDL For VSS Control |
| FNSPD_VTA_AC | VSS Control Gain Cal Acceleration Mode |
| FNSPD_VTA_DC | VSS Control Gain Cal Deceleration Mode |
| AC_FB_KI | VSS Control Gain Cal Nm/Mph |
| FNSPD_VTA_RS | VSS Control Gain Cal Resume Mode |
| FNSPD_VTA_SS | VSS Control Gain Cal Steady State |
| FNSPD_VTA_TP | VSS Control Gain Cal Tap Up Mode |
| SPD_VS_MAX | VSS Control Max VSS |
| FNSPD_ASTALL | VSS Control Min Engine Torque |
| SPD_VS_MIN | VSS Control Min VSS |
| TR_LIM_SPD_SW | VSS Control Engine Torque Limit Switch |
| FNSPD_VSB_RS | Xnorm VSS Control 45 |
| FNSPD_VS_SET | Xnorm VSS Control 46 |
| FNSPD_VSB_TP | Xnorm VSS Control 47 |
| FNSPD_VSE_RS | Ynorm VSS Control 44 |
| FNSPD_VSE_SS | Ynorm VSS Control 45 |
| FNSPD_VSE_TP | Ynorm VSS Control 46 |
| Manufacturer Name | Name |
|---|---|
| CC_CL_CNTRL | CC CL CNTRL |
| CC_CL_MX_SLP | CC CL MX SLP |
| CC_CL_RPM | CC CL RPM |
| CC_DPDL_LOTM | CC DPDL LOTM |
| CC_ENER_ITC | CC ENER ITC |
| CC_ENER_LIM | CC ENER LIM |
| CC_ENER_SLP | CC ENER SLP |
| CC_FM_RATE | Cruise Control Fuel Monitor Rate |
| CC_FM_STRCAP | CC FM STRCAP |
| CC_FM_STRKTM | CC FM STRKTM |
| CC_LL_DN_RMP | CC LL DN RMP |
| CC_LL_DN_STR | CC LL DN STR |
| CC_LL_UP_HLD | CC LL UP HLD |
| CC_LL_UP_RMP | CC LL UP RMP |
| CC_LOW_INC | CC LOW INC |
| CC_LOW_LOCK1 | CC LOW LOCK1 |
| CC_LOW_LOT | CC LOW LOT |
| CC_LOW_RMP | CC LOW RMP |
| CC_LOW_SLP | CC LOW SLP |
| CC_PSCOLSTRT | CC PSCOLSTRT |
| CC_SFT_MUL | CC SFT MUL |
| CC_SFT_OFF | CC SFT OFF |
| CC_STRK_SSA | CC STRK SSA |
| CC_STRK_STQ | CC STRK STQ |
| CC_UNC_MUL | CC UNC MUL |
| CCAD_ENSLPMX | CCAD ENSLPMX |
| CCAD_MR_SLH | CCAD MR SLH |
| CCAD_MR_SLL | CCAD MR SLL |
| CCAD_MR_TQH | CCAD MR TQH |
| CCAD_MR_TQL | CCAD MR TQL |
| CCAD_NORTMX | CCAD NORTMX |
| CCAD_PPCHBO | CCAD PPCHBO |
| CCAD_ST_LTM | CCAD ST LTM |
| CCAD_ST_SLH | CCAD ST SLH |
| CCAD_ST_SLL | CCAD ST SLL |
| CCAD_ST_TQH | CCAD ST TQH |
| CCAD_ST_TQL | CCAD ST TQL |
| CCAD_STSLPMX | CCAD STSLPMX |
| CCAD_TOT_MAX | CCAD TOT Max |
| CCAD_TOT_MIN | CCAD TOT Min |
| CCAD_TQMAX | CCAD TQMAX |
| CCAD_TQMIN | CCAD TQMIN |
| K_CONV | K CONV |
| LL_DN_MIN_TM | LL DN Min TM |
| LL_DN_PRE_TM | LL DN PRE TM |
| LL_DN_RMP_TM | LL DN RMP TM |
| LL_DN_STR_TM | LL DN STR TM |
| LL_UP_MIN_TM | LL UP Min TM |
| LL_UP_PRE_TM | LL UP PRE TM |
| LL_UP_RMP_TM | LL UP RMP TM |
| SLP_DN_STRT | SLI DN STRT |
| SLP_HRD_DN | SLIP HRD DN |
| SLP_HRD_UP | SLIP HRD UP |
| STK_RMP_NUP | STK RMP NUP |
| STRK_DRP_NN | STRK DRP NN |
| STRK_DRP_NON | STRK DRP NON |
| STRK_DRP_UP | STRK DRP UP |
| STRK_DRP_UPN | STRK DRP UPN |
| Manufacturer Name | Name |
|---|---|
| ACT_FMEM | ACT Cal If Sensor Is Determined Bad |
| ALT_CAL_DIST | ALT CAL DIST |
| BPMAX | Baro Pressure Level Max |
| BPMIN | Baro Pressure Level Min |
| MIL_SW | Check Engine Light Sw |
| P0011SW | Code P0011 Switch |
| P0054SW | Code P0054 Switch |
| P0060SW | Code P0060 Switch |
| P0068SW | Code P0068 Switch |
| P0103SW | Code P0103 Switch |
| P0108SW | Code P0108 Switch |
| P0128SW | Code P0128 Switch |
| P0138SW | Code P0138 Switch |
| P0141SW | Code P0141 Switch |
| P0148SW | Code P0148 Switch |
| P0148_LVL | Code P0148 Limit |
| P0155SW | Code P0155 Switch |
| P0158SW | Code P0158 Switch |
| P0161SW | Code P0161 Switch |
| P0171SW | Code P0171 Switch |
| P0172SW | Code P0172 Switch |
| P0174SW | Code P0174 Switch |
| P0175SW | Code P0175 Switch |
| P0183SW | Code P0183 Switch |
| P0190SW | Code P0190 Switch |
| P0191SW | Code P0191 Switch |
| P0192SW | Code P0192 Switch |
| P0193SW | Code P0193 Switch |
| P0196SW | Code P0196 Switch |
| P0201SW | Code P0201 Switch |
| P0202SW | Code P0202 Switch |
| P0203SW | Code P0203 Switch |
| P0204SW | Code P0204 Switch |
| P0205SW | Code P0205 Switch |
| P0206SW | Code P0206 Switch |
| P0207SW | Code P0207 Switch |
| P0208SW | Code P0208 Switch |
| P0209SW | Code P0209 Switch |
| P0210SW | Code P0210 Switch |
| P0222SW | Code P0222 Switch |
| P0300SW | Code P0300 Switch |
| P0301SW | Code P0301 Switch |
| P0302SW | Code P0302 Switch |
| P0303SW | Code P0303 Switch |
| P0304SW | Code P0304 Switch |
| P0305SW | Code P0305 Switch |
| P0306SW | Code P0306 Switch |
| P0307SW | Code P0307 Switch |
| P0308SW | Code P0308 Switch |
| P0309SW | Code P0309 Switch |
| P0310SW | Code P0310 Switch |
| P0315SW | Code P0315 Switch |
| P0316SW | Code P0316 Switch |
| P0340SW | Code P0340 Switch |
| P0344SW | Code P0344 Switch |
| P0345SW | Code P0345 Switch |
| P0349SW | Code P0349 Switch |
| P0420SW | Code P0420 Switch |
| P0430SW | Code P0430 Switch |
| P0442SW | Code P0442 Switch |
| P0443SW | Code P0443 Switch |
| P0446SW | Code P0446 Switch |
| P0451SW | Code P0451 Switch |
| P0452SW | Code P0452 Switch |
| P0453SW | Code P0453 Switch |
| P0454SW | Code P0454 Switch |
| P0455SW | Code P0455 Switch |
| P0456SW | Code P0456 Switch |
| P0457SW | Code P0457 Switch |
| P0460SW | Code P0460 Switch |
| P0461SW | Code P0461 Switch |
| P0462SW | Code P0462 Switch |
| P0463SW | Code P0463 Switch |
| P0500SW | Code P0500 Switch |
| P0581SW | Code P0581 Switch |
| P0602SW | Code P0602 Switch |
| P0605SW | Code P0605 Switch |
| P0606SW | Code P0606 Switch |
| P060CSW | Code P060C Switch |
| P0708SW | Code P0708 Switch |
| P0713SW | Code P0713 Switch |
| P0722SW | Code P0722 Switch |
| P0960SW | Code P0960 Switch |
| P1000SW | Code P1000 Switch |
| P1233SW | Code P1233 Switch |
| P1237SW | Code P1237 Switch |
| P1270SW | Code P1270 Switch |
| P1502SW | Code P1502 Switch |
| P1633SW | Code P1633 Switch |
| P1635SW | Code P1635 Switch |
| P1639SW | Code P1639 Switch |
| P1702SW | Code P1702 Switch |
| P1703SW | Code P1703 Switch |
| P1705SW | Code P1705 Switch |
| P1711SW | Code P1711 Switch |
| P1729SW | Code P1729 Switch |
| P2008SW | Code P2008 Switch |
| P2014SW | Code P2014 Switch |
| P2096SW | Code P2096 Switch |
| P2097SW | Code P2097 Switch |
| P2098SW | Code P2098 Switch |
| P2099SW | Code P2099 Switch |
| P2105SW | Code P2105 Switch |
| P2195SW | Code P2195 Switch |
| P2197SW | Code P2197 Switch |
| U0101SW | Code U0101 Switch |
| U0155SW | Code U0155 Switch |
| U0300SW | Code U0300 Switch |
| SARCHG | Engine Displacement |
| VSS_ERR_LVL | Deviation Limit For P0500 |
| IMSC_CNT_LVL | Deviation Limit For P1519 |
| TCVSR | Filter For Vehicle Acceleration Rate Command |
| TCVST | Filter For VSS For Transmission |
| INJ_FAIL_CNT | Injector Fail Count Set High |
| OSS_ERR_UP | OSS Deviation Up Counter |
| P0112SW | P0112 SW |
| P0113SW | P0113 SW |
| P115ESW | P115ESW |
| PUL_PER_GAL | Pulses Per Gallon Conversion Factor |
| TCSTRT_WRM | Startup ECT For Normal Heater Performance |
| DISFMEM_DSRD | Sw To Take Fault Action On DIS Fault |
| MISFMEM_DSRD | Sw To Take Fault Action On Misifre |
| WOTCOT | Duration Inhibit AC At Wide Open Throttle |
| CHT_ER_TM | Duration For CHT Fault To Set Code |
| FNECTWUT | Duration For Warm Up |
| ACTP_SH | TP Above Inhibits AC At Wide Open Throttle |
| ACTP_CL | TP Below To Permit AC After Wide Open Throttle |
| PPS_DELTA | TP For PT Clear |
| PPS_THBP2_SH | TP For Wide Open Throttle Beginning |
| FN654S | Warm Up Duration |
| Manufacturer Name | Name |
|---|---|
| LAM_REACT | Requested Lambda After Injector Inhibit |
| DFSRPM_PC | DFSRPM PC |
| DFLOD | Max Engine Load To Enter |
| DFS_PRV_N | Max RPM To Permit Hysteresis |
| DFSECT | Min Coolant For Fuel Shutoff |
| DFSECT_PC | Min Coolant For Fuel Shutoff In Profile Corr |
| DFNOVS | Min N/V Allowed For Fuel Shut Off |
| DFSRPM | Min RPM To Enter |
| DFSVS | Min VSS To Enter |
| NDFSO | Neutral Deceleration Fuel Shutoff Selection Flag |
| DFSRPM_CL | RPM Below To Turn Fuel On |
| DFS_PRV_SW | Switch To Permit Hysteresis |
| CTDFSO | Duration At Closed Throttle To Enter |
| CTEDSO | Duration At Closed Throttle To Enter Extended |
| TOUT_RMPOFF | Engine Torque Ramp Off Rate |
| TOUT_RMPON | Engine Torque Ramp On Rate |
| DFSVS_CL | VSS Below To Turn Fuel On |
| Manufacturer Name | Name |
|---|---|
| FP_EO_DM_SW | FP EO DM SW |
| FP_ER_DM_SW | FP ER DM SW |
| FP_PU_DM_SW | FP PU DM SW |
| Manufacturer Name | Name |
|---|---|
| HESDETFR_CAL | Forced Anti Stall Fraction |
| FUL_IOM_CAL__A | Forced Maturity Cal |
| FUL_RTBU_MIN__A | Low Side Row Boundary For IOM Adapt Window |
| FUL_IOM_LMIN | Number Of Loops To Be Mature |
| FADPT_SWT_CT | Adaptive Switch Count Required For Learning |
| FUL_IOM_SMIN | Min Switch Count For Learning Maturity |
| FADPT_PTP | Peak To Peak During Adaptation |
| HESDET_SW__A | Switch To Shut Off Hes Detection |
| FUL_IOM_SW__A | Switch To Shut Off Maturity |
| FUL_RTBU_MAX__A | High Side Row Boundary For IOM Adapt Window |
| FUL_IOM_WINA | Window Around Stoich To Count |
| Manufacturer Name | Name |
|---|---|
| MIS_NMAX_NEU | Max Misfire RPM Neutral |
| Manufacturer Name | Name |
|---|---|
| OSC_VS1DWNSHFT | Max VSS For 2 1 Downshift In OSC |
| OSC_VS2DWNSHFT | Max VSS For 3 2 Downshift In OSC |
| OSC_VS3DWNSHFT | Max VSS For 4 3 Downshift In OSC |
| VSBAR_MIN | Max VSS For OSC |
| MIN_VFS_RPM | Min RPM For OSC Line Pressure Level |
| OSC_VS4UPSHFT | Min VSS For 3 4 Upshift In OSC |
| OSC_MASK | OSC Permit Bit Mapping |
| Manufacturer Name | Name |
|---|---|
| PPC_PID_PTR_ARY | Power PC PID Pointer Array |
| PPC_PID_PTR_CNT | Power PC PID Pointer Counts |
| RESET_KAM | Reset Keep Alive Memory |
| Manufacturer Name | Name |
|---|---|
| INJON_TST | Injectors On When Tq Test Sw Set |
| LAM_TST | Lambda When Tq Test Sw Set |
| SPK_TST | Ignition Timing Engine Torque Ratio When Tq Test Sw Set |
| TQ_TST_SW__A | Engine Torque Test Sw |
| Manufacturer Name | Name |
|---|---|
| CCL_SW | Check Fuel Cap Switch |
| J1979_01_1C | Emissions Level For Vehicle |
| ENG_CONFIG_1 | Engine Configuration 1 |
| ENG_CONFIG_2__A | Engine Configuration 2 |
| KAM_ROM_SW | Keep Alive Memory ROM Test Switch |
| MODE08MAP_1 | Mode08 Mapping 1 |
| MODE08MAP_2 | Mode08 Mapping 2 |
| MODE08MAP_3 | Mode08 Mapping 3 |
| MODE08MAP_4 | Mode08 Mapping 4 |
| MODE09MAP_1 | Mode09 Mapping 1 |
| MODE09MAP_2 | Mode09 Mapping 2 |
| MODE09MAP_3 | Mode09 Mapping 3 |
| MODE09MAP_4 | Mode09 Mapping 4 |
| TESTIDMAP_1 | Testid Mapping 1 |
| TESTIDMAP_10 | Testid Mapping 10 |
| TESTIDMAP_11 | Testid Mapping 11 |
| TESTIDMAP_2 | Testid Mapping 2 |
| TESTIDMAP_3 | Testid Mapping 3 |
| TESTIDMAP_4 | Testid Mapping 4 |
| TESTIDMAP_5 | Testid Mapping 5 |
| TESTIDMAP_6 | Testid Mapping 6 |
| TESTIDMAP_7 | Testid Mapping 7 |
| TESTIDMAP_8 | Testid Mapping 8 |
| TESTIDMAP_9 | Testid Mapping 9 |
| Manufacturer Name | Name |
|---|---|
| BYPS_BRKPNT | BYPS BRKPNT |
| COIL_NMAX | COIL NMAX |
| COIL_VBATMAX | COIL VBATMAX |
| COIL_VBATMIN | COIL VBATMIN |
| CPRIMLVL | Coil Primary Voltage Lower Threshold |
| CPRIMUP | Coil Primary Voltage Upper Threshold |
| DIS_COP_HW | DIS COP HW |
| Manufacturer Name | Name |
|---|---|
| CIDUP | CID Up Counter |
| CPS_NMAX | Max RPM To Run Crank Sensor Test |
| PIPUP | Profile Ignition Pickup Up Counter |
| Manufacturer Name | Name |
|---|---|
| PG_CATMID_CL | Cat Temperature For Purge Hysteresis |
| FN610 | FTPT Transfer Relationship |
| FNPG_FUL_TPR | Max Allowed % Of Fuel From Purge |
| PG_CATMID_SH | Min Cat Temperature For Purge |
| FNPG_RAMP | Multiplier To Flow When Ramping Up |
| FNPG_RPM | Multiplier To Limit Flow Using RPM |
| FNPG_FLO_AM | Purge Flow To Reduce Gain Cal During Adaptation |
| FNPGRAMPDWN | Purge Ramp Down Rate Command |
| FNPGRAMPDWNM | Purge Ramp Down Rate During Evaporative Emissions Idle Tests |
| FNPGRAMPDWNT | Purge Ramp Down Rate Command With Excessive Vacuum |
| FNPGRAMPUP | Purge Ramp Up Rate Command |
| FNPGRAMPUPM | Purge Ramp Up Rate During Evaporative Emissions Idle Tests |
| PG_VAC_TPRN | Purge Vacuum State Limit |
| PG_FLOW_RMP2 | Limit To Ramp Up Or Freeze Purge |
| PG_DFS_TM | Duration To Hold Purge When Cylinders Are Shut Off |
| Manufacturer Name | Name |
|---|---|
| AIR_BRK_IAF | Air Leakage From Brake Booster |
| FNETC_MTRDUNTHR | Air Leakages Not Through Throttle Body |
| AIR_TP_SW | Air Tp Switch |
| ETC_MX_SSERR_PWDEF | Allowable Max Steady State Th Deviation Ef |
| ETC_MX_SSERR_STTEST | Allowable Max Steady State Th Deviation St |
| ETC_MX_SSERR | Allowable Max Steady State Throttle Deviation |
| IPC_ERR_LIM__A | Allowable Total Wheel Engine Torque Deviation |
| FNETCFACP | Min To Desired Conversion |
| FOOT_SLACK | Dead Band For Pedal |
| FNPD_BP_PPS | Driver Demand Barometric Pressure Modifer |
| FNPD_TQE_BSE | Driver Demand Engine |
| FNPD_TQE_LOW | Driver Demand Engine 4x4 Low |
| FNPD_TQO_BSE | Driver Demand Wheel |
| FNPD_TQO_LOW | Driver Demand Wheel 4x4 Low |
| FNETC_CD70 | Effective Throttle Area |
| PD_TQTBL_SRC | Eng To OSS Switch |
| ETC_BENCH_SW | Electronic Throttle Control Bench Switch |
| ETC_CL_TP | Electronic Throttle Control CL TP |
| ETC_DEF_ANG | Electronic Throttle Control DEF ANG |
| ETC_TQ_KD | Electronic Throttle Control Derivative Gain Cal |
| PD_SCALE_SW | Electronic Throttle Control Enhancement |
| ETC_ERR_TC | Electronic Throttle Control Deviation Duration Constant |
| ETC_FAST_TC | Electronic Throttle Control Fast Deviation Duration Constant |
| ETC_TQ_KI | Electronic Throttle Control Integral Gain Cal |
| ETC_DTY_UCLP | Electronic Throttle Control Max Duty Cycle |
| ETC_MAX_TA | Electronic Throttle Control Max Throttle Angle |
| ETC_TQ_KP | Electronic Throttle Control Proportional Gain Cal |
| ETC_SLOW_TC | Electronic Throttle Control Slow Deviation Duration Constant |
| ETC_TA_MULT | Electronic Throttle Control Throttle Multiplier |
| FNTQ_ETC_CLP | Electronic Throttle Control Engine Torque Limit By Requestor |
| FNETC_TARGET_TA | Targeted Ta For A Given Airflow |
| FNETCISCMAX | Max Idle Throttle Airflow Position |
| FNSPD_MINAIR | Min Idle Airflow By Speed |
| ETC_ISC_KDC | Idle Electronic Throttle Control Derivative Term Closing |
| ETC_ISC_KDO | Idle Electronic Throttle Control Derivative Term Opening |
| ETC_ISC_KIC | Idle Electronic Throttle Control Integral Term Closing |
| ETC_ISC_KIO | Idle Electronic Throttle Control Integral Term Opening |
| ETC_ISC_KPC | Idle Electronic Throttle Control Proportional Term Closing |
| ETC_ISC_KPO | Idle Electronic Throttle Control Proportional Term Opening |
| FNTQE_INDINV | Indicated Engine Torque Target Inverse |
| IPC_ROM_ENBL | Interprocessor Communication ROM ENBL |
| IPC_ROM_SW | Interprocessor Communication ROM SW |
| ETC_FM_MX_CMD | Max Allowed Throttle Angle In FMEM |
| ETC_PID_MX | Max Electronic Throttle Control PID Term |
| PD_DLTTQ_LIM | Max First Step Of Tq Change |
| ETC_PDQ_MX | Max PDQ Delta Throttle |
| ETC_PDQ_MX_TR | Max PDQ Delta Throttle For Engine Torque Reduction |
| FNGRD_PP_LIM | Max RPM In Guard Mode Using Pedal |
| FNTQE_SCH_MX | Max Scheduled Engine Torque |
| FNETCTPMAX | Max Throttle Angle By RPM |
| ETC_TQ_MAX | Max Throttle For Engine Torque Rate Airflow Limiting |
| FNPD_TQ_CLIP | Max Engine Torque At Given RPM In Park Or Neutral |
| TQEMAXCUR_SL | Max Engine Torque At Sea Level |
| F | Min Allowed Cal Electronic Throttle Control Mapping |
| ETC_PID_MN | Min Electronic Throttle Control PID Term |
| ETC_PDQ_MN | Min PDQ Delta Throttle |
| ETC_PDQ_MN_TR | Min PDQ Delta Throttle For Engine Torque Reduction |
| ETC_TQ_MIN | Min Throttle For Engine Torque Rate Airflow Limiting |
| FNETC_FF | Throttle Angle Feed Forward Prediction |
| ETC_PF_SW | Pedal Follower Switch |
| PD_PPS_MRGN | Pedal Margin To See If Its Changed Enough |
| FNETCPPS | Pedal Position 2 Pedal Angle |
| FNETCFA | Pedal Position 2 TA |
| IPPS1_MULT | Pedal Position Multiplier |
| PD_RAMPDN | Pedal Engine Torque Ramp Going Down |
| PD_RAMPUP | Pedal Engine Torque Ramp Going Up |
| FN1033 | Pressure Level Drop Per Barometric Pressure |
| FNETC_PR | Pressure Level Ratio Across Throttle Body |
| FNPD_N_ADDER | Park Neutral RPM Limit Adder |
| FNTQ_ETC_N | RPM For Electronic Torque Reduction |
| PD_TQEMOD_ENABLE | Switch Allowed For OSS Compensation Factor |
| TAPMAX_VLTS | Max Throttle Angle Position Voltage |
| TAPMIN_VLTS | Min Throttle Angle Position Voltage |
| PAR_PP_WOP | Limit From Part Pedal To Wide Open Pedal |
| PAR_WOP_PP | Limit From Wide Open Pedal To Part Pedal |
| FNETC_VAC | Throttle Pressure Ratio Filter Time Constant |
| FNTQ_RATEMAX | Tip In Torque Rate Multiplier By N V |
| FNTQ_RATEMUL | Tip In Torque Rate Multiplier By Pedal Position |
| TQ_ENG_INERT | Engine Torque Inertia Estimate |
| TQE_TRIM_MAX | Torque Trim Idle Adapt Max |
| ARCHLK | Unmetered Air Leakage |
| FNIPC_ERR_WEIGHT | Wheel Torque Error Weight |
| ETC_PPS_RMP2 | Wide Open Pedal=wide Open Throttle Ending |
| ETC_PPS_RMP1 | Wide Open Pedal=wide Open Throttle Beginning |
| FN047A | Xnorm Drive By Wire 06 |
| FNETC_TAPA | Xnorm Drive By Wire 07 |
| FNETC_AIRBP | Xnorm Drive By Wire 08 |
| FNIPC_WT_X | Xnorm Drive By Wire 09 |
| FNPD_NOR_BP | Xnorm Drive By Wire 10 |
| FN_ENGSP_BSE | Xnorm Drive By Wire 11 |
| FN_ENGSP_LOW | Xnorm Drive By Wire 12 |
| FN_NOBAR_BSE | Xnorm Drive By Wire 13 |
| FN_NOBAR_LOW | Xnorm Drive By Wire 14 |
| FNTQ_NOR_GRS | Xnorm Drive By Wire 15 |
| FNTQ_NOR_PPS | Xnorm Drive By Wire 16 |
| FNTQE_NOR_N | Xnorm Drive By Wire 17 |
| FN046A | Ynorm Drive By Wire 06 |
| FNETC_VACFA | Ynorm Drive By Wire 07 |
| FNETC_VACF | Ynorm Drive By Wire 08 |
| FNIPC_WT_Y | Ynorm Drive By Wire 09 |
| FNPD_NOR_PPS | Ynorm Drive By Wire 10 |
| FN_PPS_BSE_E | Ynorm Drive By Wire 11 |
| FN_PPS_LOW_E | Ynorm Drive By Wire 12 |
| FN_PPS_BSE_O | Ynorm Drive By Wire 13 |
| FN_PPS_LOW_O | Ynorm Drive By Wire 14 |
| FNTQ_NOR_SDR | Ynorm Drive By Wire 15 |
| FNTQ_NOR_VSR | Ynorm Drive By Wire 16 |
| FNTQE_NOR_TQ | Ynorm Drive By Wire 17 |
| Manufacturer Name | Name |
|---|---|
| IDQZ_PCM_FMASK | Equizzer PCM Fault Code Permit |
| ESPI_VSW_TMOUT | ESPI VSW TMOUT |
| ETC_ENGTQ_SW | Electronic Throttle Control ENGTQ SW |
| FNIPC_TPLD_TC | Filter Constant For TP Based Engine Load |
| FNIPC_TQDD_DN_TC | Filter Constant For Torque Going Down |
| FNIPC_TQDD_UP_TC | Filter Constant For Torque Going Up |
| IPC_COMM_FCNT | Interprocessor Communication COMM FCNT |
| IPC_DESMAF_DEL | Interprocessor Communication Desmaf Difference |
| IPC_HIST_SIZE | Interprocessor Communication History Size |
| IPC_INIT_FCNT | Interprocessor Communication INIT FCNT |
| IPC_IO_ENA | Interprocessor Communication IO Checking Permit |
| IPC_TP_TST_SW__A | Interprocessor Communication Engine Load Source Configuration |
| IPC_CRS_ACL_MAX | Interprocessor Communication Max VSS Ctl Acceleration |
| IPC_MODE_FCNT | Interprocessor Communication MODE FCNT |
| IPC_N_FCNT | Interprocessor Communication N Fault Limit |
| IPC_PCMFM_ENA | Interprocessor Communication PCM Fault Code Permit |
| IPC_QUIZ_FCNT | Interprocessor Communication QUIZ FCNT |
| IPC_QUIZ_TM | Interprocessor Communication QUIZ TM |
| IPC_REINIT_FCNT | Interprocessor Communication REINIT FCNT |
| IPC_RPM_ERR_LIM | Interprocessor Communication RPM ERR LIM |
| IPC_SPI_FCNT | Interprocessor Communication SPI FCNT |
| IPC_SWV_FCNT | Interprocessor Communication SWV FCNT |
| IPC_TA_ERR_LIM | Interprocessor Communication Ta Deviation Limit |
| IPC_IDLTQMAX | Max Allowed Engine Torque For Idle |
| IPC_TQDDMIN | Min Allowed Engine Torque |
| IPC_IDLTQMIN | Min Allowed Engine Torque For Idle |
| TQE_SML_POS | Min Allowed Engine Torque For Something |
| IPC_TQMX_MULT | Torque Mult For Tip Ins |
| VSD_BCU_TMAX | VSD BCU TMAX |
| VSD_BSC_TMAX | VSD BSC TMAX |
| VSD_IC_TMAX | VSD IC TMAX |
| VSD_TCM_TMAX | VSD TCM TMAX |
| Manufacturer Name | Name |
|---|---|
| TPPC_DIF_INC | TPPC Fault Increment |
| TPPC_DIF_LVL | TPPC Fault Limit |
| TPPC_FLT_READ | TPPC FLT READ |
| Manufacturer Name | Name |
|---|---|
| ETC_CIB_COMP_INIT | CIB Initialization Cal |
| IPC_ETCCIBCOMPDELTA_MAX | CIB Sludge Comp Max |
| ETC_CIB_LARGE_STEP | CIB Sludge Comp Max Large Step |
| ETC_CIB_SMALL_STEP | CIB Sludge Comp Max Small Step |
| ETC_CIB_COMP_MAX | CIB Sludge Comp Max Thr Angle Adder |
| ETC_CIB_AMMAX__A | Electronic Throttle Control CIB AMMAX A |
| ETC_CIB_AMMIN | Electronic Throttle Control CIB AMMIN |
| ETC_CIB_DTCTM | Electronic Throttle Control CIB DTCTM |
| ETC_CIB_ISC_LIM | Electronic Throttle Control CIB ISC LIM |
| ETC_CIB_ISC_UPPER_LIM | Electronic Throttle Control CIB ISC High Side LIM |
| ETC_CIB_TADELT | Electronic Throttle Control CIB TADELT |
| FNETC_CIB_MULT | FNETC CIB MULT |
| Manufacturer Name | Name |
|---|---|
| TQDRV_POS_TQ | TQDRV POS Torque |
| Manufacturer Name | Name |
|---|---|
| FNAMNORM | Air Mass Index Used For Temperature Cell Selection |
| TBEXOMF_A | Cat Exotherm Due To Misfire |
| FN448AA | Cat Temperature Increase Using Exhoterm |
| FN441C__A | EGR Effect On Exhaust Temperature |
| FNFL_EXT | Exhaust Flange Temperature |
| TB441T_A | Exhaust Temperature Compensation Factor For ECT |
| LAM_1ST_STEP | Lambda 1st Step In Control |
| LAM_EXT_MAX | Lambda Absoute Value Used For Starting Control |
| FN_EXT_STP | Lambda Decrement For Temperature Difference |
| LAM_EXT_STEP | Lambda Decrement When In Temperature Control Per 40ms |
| FN441AA | Lambda Effect On Exhaust Temperature |
| LAM_EXT_LBT | Lambda Exhaust Temperature LBT |
| LAM_AVE_SW | Lambda Switch For Absolute Or Step Control |
| LAM_EXT_MIN | Lowest Lambda Cal Allowed For Temperature Control |
| TB448_A | Multiplier Of Exhaust Temperature To Cat Temperature |
| TB448_CMD2 | Multiplier Of Exhaust Temperature To Cat2 Temperature |
| FN441B__A | Ignition Timing Effect On Exhaust Temperature |
| TC_SOAK_CMS__A | TC SOAK CMS A |
| TC_SOAK_FL | TC SOAK FL |
| TB445L_A | Temperature Diff Between Exhaust And Cat |
| TB445L_CMD2 | Temperature Diff Between Exhaust And Cat2 |
| TB445L_A | Temperature Loss From Manifold To Catalyst |
| TB443L_A | Temperature Loss From Valve To O2 Sensor |
| TB442_A | Duration Constant For Exhaust Temperature |
| TB443_A | Duration Constant For O2 Sensor Temperature |
| TB449A_A | Duration Constant For Temperature Using Lambda |
| FNFL_NRM_X | Xnorm Exhaust Temperature 18 |
| FNZERO_FLT | Xnorm Exhaust Temperature 19 |
| FNFL_NRM_Y | Ynorm Exhaust Temperature 18 |
| Manufacturer Name | Name |
|---|---|
| COOL_CHT_MAX | CHT Temperature That Defines Stage 2 |
| CHT_CRIT_SH__A | CHT Temperature That Defines Stage 3 |
| CHTIL_MAX | CHT Temperature To Turn On Light Stage 1 |
| COOL_CYL_OFF | Cylinders To Shut Off In Stage 3 |
| COOL_INT | Failsafe Cooling Integral Gain Cal |
| COOL_GN | Failsafe Cooling Overall Gain Cal |
| COOL_CYL_MIN | Min Cylinders To Shut Off |
| COOL_CYL_IDL | Min Cylinders To Shut Off At Idle |
| FNCOOL_MAX | Number Of Cylinders To Turn Off |
| COOL_CAL_SW | Switch To Permit Failsafe Cooling |
| COOL_MAN | Switch To Force Manual Failsage Cooling |
| COOL_WOT_TIM | Duration To Keep All Cylinders On At Wide Open Throttle |
| Manufacturer Name | Name |
|---|---|
| FIECT_3_CL | ECT Inhibits Oil Overtemp Mode |
| FIECT_4_CL | ECT Inhibits Oil Overtemp Mode B |
| FIECT_3_SH | ECT To Permit Oil Overtemp Mode |
| FIECT_4_SH | ECT To Permit Oil Overtemp Mode B |
| FIRPM_3 | RPM To Permit Oil Overtemp Mode |
| TR_TOIL_SH | EOT Above Which Engine Torque Reduction Is Begun |
| TR_TOIL_CL | EOT Below Which Engine Torque Reduction Is Disabled |
| FILOAD_3 | Engine Load To Permit Oil Overtemp Mode |
| FITP_3 | Throttle To Permit Oil Overtemp Mode |
| FNTOIL_ECT | Engine Torque Ratio Vs ECT |
| FNTOIL_RPM | Engine Torque Ratio Vs RPM |
| Manufacturer Name | Name |
|---|---|
| ESPI_DISABLE | EPSI Inhibit |
| IPC_QZ_SWV__A | Equizzer Software Version |
| IPC_SWV__A | Interprocessor Communication Software Version |
| Manufacturer Name | Name |
|---|---|
| FN393FB | A/F Enrichment For Engagements Duration Forward |
| FN393RB | A/F Enrichment For Engagements Duration Reverse |
| FN387XB | A/F Multiplier To Avoid Stalls |
| ACDC_TI_TCPP | ACDC TI TCPP |
| ACDC_TO_TCPP | ACDC TO TCPP |
| WOTADP_SW | Adaptation Wide Open Throttle Sw |
| FN371B | Air Fueling Enrichment For Engagements |
| FKARCIDLE | Aircharge Filter For Idle |
| ANTICIPATION | Aircharge Switch For Anticipation Logic |
| ARCHSW | Aircharge Switch For Filtering |
| ARCHIDLE_SW | Aircharge Switch For Unique Idle Filter |
| ARCWOTCOR | Aircharge Wide Open Throttle Multiplier |
| FNCYL_OFF__A | Commanded Lambda When Cyl Off |
| FUL_OVRD_LAM | Commanded Lambda When Fueling Is Overridden |
| ARCANTCOR | Compensation For Max Cylinder Air Charge |
| FNCLDMUL | Cyl Off Lambda Multiplier |
| ECTSTABL_CL | ECT To Return To Base Fueling Table Cold |
| ECTSTABL | ECT To Switch Base Table |
| FUL_OVRD_SW | Fuel Override Switch |
| ECTSTABLTIM | Fuel Duration To Switch Base Table |
| LAM_CYL_OFF | Lambda When Cylinders Are Off |
| LOST_FUL_ADD | Lost Fueling Adder |
| LOST_FUL_MUL | Lost Fueling Multiplier |
| AIR_MAN_VOL | Manifold Volume (liters) |
| OLMCL | Non Feedback Fuel Multiplier |
| EXT_CMD_SF | Safety Factor To Adjust Max Cat Temperature |
| EXT_FLN_SF | Safety Factor To Adjust Max Flange Temperature |
| EXT_FEGO_SF | Safety Factor To Adjust Max HEGO Temperature |
| NOMINAL_AFR | Stoichiometric Air Fueling Ratio |
| CAT_TEMP_SW | Switch For Cat Temperature Ctl |
| FEG_TEMP_SW | Switch For Ego Temperature Ctl |
| FLN_TEMP_SW | Switch For Flange Temperature Ctl |
| FUL_CTRL_SW | Switch Identifies Fuel Control Mode |
| CAT_MAX_LO | Temperature To Begin Fuel Control For Cats Stage1 |
| CAT_MAX_HI | Temperature To Begin Fuel Control For Cats Stage2 |
| FEGO_MAX | Temperature To Begin Fuel Control For Ego |
| FLN_MAX | Temperature To Begin Fuel Control For Flange Stage2 |
| CAT_MAX_CL | Temperature To Exit Fuel Control For Cats |
| FEGO_MAX_CL | Temperature To Exit Fuel Control For Ego |
| FLN_MAX_CL | Temperature Toexit Fuel Control For Flange |
| FN022G | Xnorm Fueling 20 |
| FN070C | Xnorm Fueling 21 |
| FN027B | Ynorm Fueling 19 |
| FN034A | Ynorm Fueling 20 |
| Manufacturer Name | Name |
|---|---|
| FN1360B | Base Fueling Table |
| FN1362_LOST | Base Fueling Table Lost Fueling Amount |
| FN070B | Xnorm Base Fueling Calculation 22 |
| FN072T | Ynorm Base Fueling Calculation 21 |
| Manufacturer Name | Name |
|---|---|
| FN1362LB | Base Fueling Table Cold |
| FN1361LB | Base Fueling Table Cold Enrichment Decay |
| FN1361ELOST | Base Fuel Table Cold Enrichment Decay Lost Duration |
| FN1361HELOST | Cold Enrichment Decay Lost Duration Hes Fuel |
| FN018BE | Ynorm Startup Cold Fueling 22 |
| FN018BB | Ynorm Startup Cold Fueling 23 |
| Manufacturer Name | Name |
|---|---|
| FUELMASS_MULT | Fueling Multiplier Per Cylinder |
| Manufacturer Name | Name |
|---|---|
| LAM_HOT_MIN | Min Allowed Short Term Fuel Trim With Lean Deviation |
| LAM_CHK_MAX | Short Term Fuel Trim Inhibits Logic |
| FUEL_ERR_SW | Switch Allowed For Use Of Plugged Filter Logic |
| OL_HOT_TM | Duration Between Checks For Lean Deviation |
| P0148_TC | Duration Constant For Lean Deviation |
| BYPLES1 | Duration Delay Period For Lack Of Switching |
| Manufacturer Name | Name |
|---|---|
| FNPW_BKCOMP | Fueling Inj Breakpoint Multiplier Fordeltap |
| FNPW_HSCOMP | Fueling Inj High Slope Multiplier Fordeltap |
| FNPW_LSCOMP | Fueling Inj Low Slope Multiplier Fordeltap |
| FUEL_BKPT | Fueling Injector Breakpoint |
| AHISL | Fueling Injector Hi Slope |
| ALOSL | Fueling Injector Low Slope |
| MINPW | Fuel Injector Lower Pulse Width |
| RF_DPREF_CAL | Fuel Injector Pressure Level Drop |
| FNPW_OFFCOMP | Injector Comp Batt Volt For Pressure Level |
| FNPW_OFFSET | Injector Comp Batt Volt Bias |
| FNRT_OFFSET | Injector Flow Rate Bias For Temperature |
| FNRT_SLOPE | Injector Flow Rate Slope For Temperature |
| Manufacturer Name | Name |
|---|---|
| FNBOUNDARY | Crank Degrees Where You Inject Any More Fueling |
| FN336 | Injector Timing Vs ECT |
| INTAKE_OPEN | Intake Valve Opening Degrees |
| SPRAY_DELAY | Duration For Fuel Travel To Valve |
| Manufacturer Name | Name |
|---|---|
| FP_CRK_SW | FP CRK SW |
| FPMP_ON_TM | Fuel Pump Min On Duration |
| FPMP_SMON_EN | P0231 Switch When Running |
| Manufacturer Name | Name |
|---|---|
| GRRAT1 | 1st Gear Ratio |
| GRRAT2 | 2nd Gear Ratio |
| GRRAT3 | 3rd Gear Ratio |
| GRRAT4 | 4th Gear Ratio |
| NVBASE | Base N/V Of Vehicle |
| RT_CHAIN | Chain Ratio |
| GEAR2RATIO | Gear Ratios |
| NV_MIN | Min Learned N/V |
| NOVCNT | Multiplier NV |
| GRRAT_R | Reverse Gear Ratio |
| Manufacturer Name | Name |
|---|---|
| GR_RT_1 | 1st Gear Ratio Manual |
| GR_RT_2 | 2nd Gear Ratio Manual |
| GR_RT_3 | 3rd Gear Ratio Manual |
| GR_RT_4 | 4th Gear Ratio Manual |
| GR_RT_5 | 5th Gear Ratio Manual |
| GR_RT_6 | 6th Gear Ratio Manual |
| GR_RT_R | Rev Gear Ratio Manual |
| Manufacturer Name | Name |
|---|---|
| FN503TQ | Imrc Opening RPM |
| FN2260D | Ignition Timing Adder To Borderline For Imrcs |
| FN2360D | Ignition Timing Adder To MBT Table For Imrcs |
| FN016D | Xnorm Imrc 27 |
| FN012F | Ynorm Imrc 28 |
| Manufacturer Name | Name |
|---|---|
| FN894 | Dashpot Limit 1 |
| FN894H | Dashpot Limit 4th Gear |
| FN894L | Dashpot Limit W/O Deceleration 4th Gear |
| FN879A | Dashpot Decay Rate Command |
| BRK_VS_RATE | Dashpot Deceleration Rate |
| DASCTL | Dashpot For Zeroing Entry Timer |
| DASCLP_4INH | Dashpot Inhibit 4th Gear |
| DASMPH | Dashpot Min Mph |
| FNETC_DASMUL | Dashpot Preposition |
| SETLNG_TM | Dashpot Settling Duration |
| DASMHYST | Dashpot Hysteresis Band |
| KDAS | Isc Dashpot Gain Cal |
| LOWLOD | Min Engine Load Seen For Idle |
| TCDASD | Dashpot Decay Time Constant |
| TCDASU | Dashpot Recovery Time Constant |
| Manufacturer Name | Name |
|---|---|
| ALT_P_TO_PPM | ALT P TO PPM |
| FN890A | Barometric Pressure Comp For Idle Control |
| IFBS_RPM_TC | Desried RPM Duration Constant |
| DSDRPM_OFF | DSDRPM OFF |
| FN394F_TEH | ECT Dependent Dly For N D Engagement |
| FN394R_TEH | ECT Dependent Dly For N R Engagement |
| TCTRAN_RPM | Filter For Recognizing N D/R Engagement |
| FN_TCDES_DR | FN TCDES DR |
| FN851E | Gn For Idle Ctrl Err Deriv Ctl RPM Err |
| FN852A | Gn For Idle Ctrl Err Prop Ctl |
| HEDFRPM | HEDFRPM |
| FN822C | Idle Air Adder For Powersteering Switch |
| FN1886ES | Idle Air Adder For Ps Transducer |
| IS_DRBASE__A | Idle VSS Drive |
| IS_NUBASE__A | Idle VSS Neutral |
| FN825B | Idle VSS RPM Adder For ACT |
| FN825AT | Idle VSS RPM Adder For ECT |
| FN826A_COLD | Idle VSS RPM Adder For ECT When Cold |
| FN880N | Idle VSS RPM Using Duration Neutral |
| FN825AT_COLD | Idle VSS RPM For ECT When Cold |
| IS_DRBASE_A__A | IS DRBASE A |
| IS_NUBASE_A__A | IS NUBASE A |
| IPC_IPSIBR_RTMX | Isc Air Integrator Rate Command In 16msec |
| FN875HD | Isc Drive Idle Air |
| FN875HN | Isc Neutral Idle Air |
| FN875HNI | Isc Neutral Idle Air Transition |
| ISC_PTP | Isc Peak To Peak |
| ISC_PTP_SW | Isc Peak To Peak Switch |
| IPC_ISCKAM_RTMX | Keep Alive Memory Update Rate |
| IPSIMAX | Max Air Integrator While Moving |
| IDLMAF | Max Air Mass Allowed At |
| FN_ISCLPD_T | Max Allowed Idle VSS Drive |
| ISCLPN | Max Allowed Idle VSS Neutral |
| ETC_ISC_MAX | Max Allowed Idle Throttle Angle |
| PSIBRM | Max Value Used For Idle Integrator |
| ISCKAM_MAX | Max Value Used For ISC Keep Alive Memory |
| ACSTRT_WRM | Min ACT At Beginning For IAC Warm Beginning |
| ETC_ISC_MIN | Min Allowed Idle Throttle Angle |
| ECT_WRM | Min ECT For IAC Warm Beginning |
| FN861 | Min Idle VSS Drive Using TOT |
| FN861R | Min Idle VSS Reverse Using TOT |
| MINMPH | Min Mph For Idle |
| ETC_CL_TP | Min TP For Idle Code |
| PSIBRN | Min Value Used For Idle Integrator |
| ISCKAM_MIN | Min Value Used For ISC Keep Alive Memory |
| RPMCTL | RPM Deviation From Requested To Begin Idle Control |
| RPMDED | RPM Deviation From Requested To Not Allow Adaptation |
| TC_TRDSD | TC TRDSD |
| IS_GPAS_TC | Duration Constant Dsd RPM Neutral Hi Cam |
| IPC_DSDRPM_TC | Duration Constant Dsd RPM Neutral Interprocessor Communication |
| TCDESN | Duration Constant Dsd RPM When At Limit |
| TC_OVER | Duration Constant For Air Integrator Above |
| TC_UNDER | Duration Constant For Air Integrator Below |
| TCPRO_GT | Duration Constant For Prop Air Cont |
| TCPRO_LT | Duration Constant For Prop Air Cont 2 |
| NDDELTA | Duration Delay Period For N D Transition |
| UPDISC | Duration Dly Before Adaptation Is Allowed |
| TRGTN_SW_ENA | TRGTN SW ENA |
| UPDATM | Update Rate Command |
| FN084ES | Xnorm Idle 23 |
| FN089 | Ynorm Idle 24 |
| Manufacturer Name | Name |
|---|---|
| FNIDLCOT2 | AC Compressor Delay Period Cycling |
| FNIDLCOT | AC Compressor Delay Period Starting |
| FN881 | Idle Air Adder For A/C Using Head Pressure Level |
| FN887M | Idle Air Adder For A/C Using Duration AC Is On |
| FN887 | Idle Air Adder For A/C W ACT |
| FN885 | Idle Air Adder For A/C W RPM |
| FN885TE | Idle Air Adder Timer W RPM |
| FN881M | Idle Air Multr For A/C Using Head Pressure Level |
| DNAC_DR | Idle VSS Adder With A/C On In Drive |
| DNAC_NEUT | Idle VSS Adder With A/C On In Neutral |
| Manufacturer Name | Name |
|---|---|
| AIR_BRK_DCY | AIR BRK DCY |
| AIR_BRK_DUR | AIR BRK DUR |
| AIR_BRK_IAF | AIR BRK IAF |
| AIR_BRK_SW | AIR BRK SW |
| AIR_BRK_VS | AIR BRK VSS |
| Manufacturer Name | Name |
|---|---|
| FN1862DT_PM | Air Flow Multiplier In Drive 85% Ethanol |
| FN1862NT_PM | Air Flow Multiplier In Neutral 85% Ethanol |
| FN_PM_HICAMB | Idle VSS Adder For ACT % Alcohol |
| FN_PM_HICAMAT | Idle VSS Adder For ECT % Alcohol |
| FN020CT | Xnorm Alcohol 24 |
| FN018B | Ynorm Alcohol 25 |
| Manufacturer Name | Name |
|---|---|
| FN1301E | Targeted RPM |
| FN032EX | Xnorm Hes Det 25 |
| FN032EY | Ynorm Hes Det 26 |
| Manufacturer Name | Name |
|---|---|
| FN1862DT | Air Flow Multiplier In Drive |
| FN1863D | Air Flow Multiplier In Drive For Trans Temperature |
| FN1862NT | Air Flow Multiplier In Neutral |
| FN1862NIT | Air Flow Multiplier In Neutral Transition |
| CMD_LITOFF | Cat Temperature For RPM Adder |
| CMD_STABLE | Cat Temperature To Not Use RPM Adder |
| BZZRPM | Idle VSS Adder For Startup |
| BZZTM | Idle VSS Adder For Startup Max Duration |
| FN826B | Idle VSS RPM Adder For ACT At Startup |
| FN826A | Idle VSS RPM Adder For ECT At Startup |
| TKDTN | Duration To Keep Adder For Startup ACT |
| FN803A | Duration To Keep Adder For Startup ECT |
| FN020H | Xnorm Startup 26 |
| FN019 | Ynorm Startup 27 |
| Manufacturer Name | Name |
|---|---|
| KNK_FAST_CNT | Cyl Events After Engine Load Trans For Knk Det Fst Counter |
| FAST_SPK_ADV | Fast Ignition Timing Advance Increment |
| FN149B | Frac Of Profile Ignition Pickup Prd For Valid Knock Signal |
| KNK_GLOBAL | Global Or Individual Cylinder Switch |
| KNK_EVCNT | Knk Events For Fast Adv Mode |
| FN2920B | Knock Compensation Factor For Lambda |
| FN1135B | Knock Sensor Advance Limit |
| FN146D | Knock Sensor Advance Rate Command |
| FN146E | Knock Sensor Fast Advance Rate Command |
| KNK_MAX_RPM | Knock Sensor Max RPM |
| KNK_MIN_ECT | Knock Sensor Min ECT |
| KNK_MIN_LOAD | Knock Sensor Min Engine Load |
| KNK_MIN_RPM | Knock Sensor Min RPM |
| KI_MODE | Knock Sensor Mode Switch |
| FN1148A | Knock Sensor Retard |
| FN143B | Knock Sensor Retard Rate Command |
| CYL_1_SENS | Knock Sensor To Use For Cyl 1 |
| CYL_10_SENS | Knock Sensor To Use For Cyl 10 |
| CYL_2_SENS | Knock Sensor To Use For Cyl 2 |
| CYL_3_SENS | Knock Sensor To Use For Cyl 3 |
| CYL_4_SENS | Knock Sensor To Use For Cyl 4 |
| CYL_5_SENS | Knock Sensor To Use For Cyl 5 |
| CYL_6_SENS | Knock Sensor To Use For Cyl 6 |
| CYL_7_SENS | Knock Sensor To Use For Cyl 7 |
| CYL_8_SENS | Knock Sensor To Use For Cyl 8 |
| CYL_9_SENS | Knock Sensor To Use For Cyl 9 |
| FN778B | Knock Limit Adder For Lambda |
| UP_NORM_EC | Knock Duration Constant When Up Averaging |
| FN1139 | Noise Window Bias From Profile Ignition Pickup Rising Edge |
| NSWIN_START | Noise Window Bias Profile Ignition Pickup Rising Edge |
| FN070U | Xnorm Knock Sensor 28 |
| FN071U | Ynorm Knock Sensor 29 |
| Manufacturer Name | Name |
|---|---|
| DN_NORM_EC | Constant For Down Averaging |
| DN_FAST_EC__A | Constant For Down Averaging During Transient |
| UP_FAST_EC | Constant For Up Averageing During Transient |
| TIP_OUT_NAVP | Decrease In Aircharge For Transient |
| TIP_IN_NAVP | Increase In Aircharge For Transient |
| Manufacturer Name | Name |
|---|---|
| FN2911B | Knock Sensor Thers Cyl 1 |
| FN2910B | Knock Sensor Thres Cyl 0 |
| FN2912B | Knock Sensor Thres Cyl 2 |
| FN2913B | Knock Sensor Thres Cyl 3 |
| FN2914B | Knock Sensor Thres Cyl 4 |
| FN2915B | Knock Sensor Thres Cyl 5 |
| FN2916B | Knock Sensor Thres Cyl 6 |
| FN2917B | Knock Sensor Thres Cyl 7 |
| FN2918B | Knock Sensor Thres Cyl 8 |
| FN2919B | Knock Sensor Thres Cyl 9 |
| KNKWIN_LEN | Knock Window Duration |
| FN1141 | Knock Window Bias |
| KNKWIN_START | Knock Window Bias 1 |
| Manufacturer Name | Name |
|---|---|
| FNKNKADVMUL | Knock Sensor Advance Mult For VCT |
| FNKNKRETMUL | Knock Sensor Retard Mult For VCT |
| FN2930 | Knock Limit Compensation Factor For VCT Cyl1 |
| FN2939 | Knock Limit Compensation Factor For VCT Cyl10 |
| FN2931 | Knock Limit Compensation Factor For VCT Cyl2 |
| FN2932 | Knock Limit Compensation Factor For VCT Cyl3 |
| FN2933 | Knock Limit Compensation Factor For VCT Cyl4 |
| FN2934 | Knock Limit Compensation Factor For VCT Cyl5 |
| FN2935 | Knock Limit Compensation Factor For VCT Cyl6 |
| FN2936 | Knock Limit Compensation Factor For VCT Cyl7 |
| FN2937 | Knock Limit Compensation Factor For VCT Cyl8 |
| FN2938 | Knock Limit Compensation Factor For VCT Cyl9 |
| Manufacturer Name | Name |
|---|---|
| ACDC_SW | ACDC Switch |
| AIR_ADAPT | Air Meter Adaption Switch |
| FN052BF | Backflow Entry TP |
| FN052BFLS | Backflow Entry TP Low Throttle |
| BAPFMM | Default Barometric Pressure Cal |
| BAPFMM_INIT | Default Barometric Pressure Cal With Corrupted Keep Alive Memory |
| DELTAMAF_FIL | DELTAMAF FIL |
| FN1036A | Engine Load W/Failed MAF |
| FN1036B | Engine Load W/Failed MAF W/IMRC Open |
| MAF_FLOW_HI_KOEO | MAF FLOW HI KOEO |
| MAF_HI_KOER | MAF Upper AD Counts For KOER |
| MAF_LO_KOER | MAF Upper AD Counts For KOER 1 |
| MAF_LO_ER | MAF Lower AD Counts |
| FN1023C | MAF Temperature Compensation |
| FNMAF_V2M | Maf Transfer Relationship |
| AIR_DEC_MUL | Manifold Dynamics Filter For Deceleration |
| MAF_HI_ER | Upper AD Counts |
| VMAFPIPLMT | Pip Limit For Over Voltage Level Conditon |
| MAF_RPM_MAX2 | RPM To Set Failed MAF |
| LOW_TP_SW | Switch To Use Low Throttle Backflow |
| P0103_LVL | Theshold For Over Voltage Level Conditon |
| TP_VMAF | TPS To Set Failed MAF |
| P0103_TC | Duration At Overvoltage To Be Failed |
| FN050 | Xnorm MAF 29 |
| FN070E | Xnorm MAF 30 |
| FN022Y | Ynorm MAF 30 |
| FN044 | Ynorm MAF 31 |
| Manufacturer Name | Name |
|---|---|
| EGO_3_CONFIG | 3rd O2 Sensor Switch |
| ACBIAS | Bias When AC Is On |
| CAT_B_THRESH | CAT B THRESH |
| CAT_T_THRESH | CAT T THRESH |
| FN1353E1 | Feedback Bias Bank1 |
| FN1353E2 | Feedback Bias Bank2 |
| FN315A | Feedback Bias Multiplier W/VSS |
| FN1353AMCTB1 | Feedback Feed Forward Bias Bank1 |
| FN1353AMCTB2 | Feedback Feed Forward Bias Bank2 |
| FNEGO_SWPT_1 | Front EGO Switch Point Relative To Stoichiometric Air Fuel |
| FN_HEGO_DCML | Front O2 Duty Cycle Multiplier |
| FN_USHTR_DC | Front O2 Heater Duty Cycle |
| USHTRDC_SW | Front O2 Heater Duty Cycle Switch |
| US_HTR_ON__A | Front O2 On |
| FNFLO | HEGO Tip Temperature Change |
| BIAS_MAX | Max Allowed Feedback Bias |
| BIAS_MIN | Min Allowed Feedback Bias |
| HTR_VOLT_NOM | Nominal O2 Heater Voltage Level |
| NUMEGO | Number Of O2 Sensors |
| ADAP_TD_SKIP | Number Of O2 Switches Before Adaptation |
| FNTDSEC8X10 | O2 Transport Delay Period In Seconds |
| TD_LOADMAX | O2 Transport Delay Period Max Engine Load Adapt |
| TD_NMAX | O2 Transport Delay Period Max RPM Adapt |
| TD_SEC_MAX | O2 Transport Delay Period Max Sec Adapt |
| TD_HEGO_MX | O2 Transport Delay Period Max Duration |
| TD_ECT_MIN | O2 Transport Delay Period Min Ect Adapt |
| TD_LOADMIN | O2 Transport Delay Period Min Engine Load Adapt |
| TD_NMIN | O2 Transport Delay Period Min RPM Adapt |
| TD_SEC_MIN | O2 Transport Delay Period Min Sec Adapt |
| TD_HEGO_MN | O2 Transport Delay Period Min Duration |
| TD_PTP_TOL | Peak To Peak Tolerance Limit |
| US_HTR_WARM | Temperature At Which Front O2 Is Warm |
| FN041D | Xnorm O2 Sensor 31 |
| FN039E | Xnorm O2 Sensor 32 |
| FNFLO_NRM_X | Xnorm O2 Sensor 33 |
| FN027G | Ynorm O2 Sensor 32 |
| FNFLO_NRM_Y | Ynorm O2 Sensor 33 |
| Manufacturer Name | Name |
|---|---|
| CAT1_FL_RAT | Bank1 Fault Ratio |
| CAT2_FL_RAT | Bank2 Fault Ratio |
| FEGO1_MX_TOT | Bank 1 Front Oxygen Sensor Max Switch Count |
| FEGO1_MX_CT__A | Bnk1 Max Frnt Hego Switches AM Cells |
| FEGO2_MX_TOT | Bank 2 Front Oxygen Sensor Max Switch Count |
| FEGO2_MX_CT__A | Bnk2 Max Frnt Hego Switches AM Cells |
| OBD2_FUL_LVL | Low Fuel Limit |
| CAT_ACT_MAX | Max Allowed ACT To Run Cat Monitor |
| AIRM_MAX__A | Max Allowed Air Mass For Cells In Cat Monitor |
| CAT_ECT_MAX | Max Allowed ECT To Run Cat Monitor |
| CAT_EGRMAX | Max Allowed EGR To Run Cat Monitor |
| CAT_LD_MAX__A | Max Allowed Engine Load To Run Cat Monitor |
| CAT_N_MAX__A | Max Allowed RPM To Run Cat Monitor |
| CAT_VSMAX | Max Allowed Vechile VSS To Run Cat Monitor |
| CAT_MX_LEAN | Max Cat Midbed Temperature To Run Cat Monitor |
| MIDBED_MAX__A | Max Cat Midbed Temperature To Run Cat Monitor 1 |
| CAT_TP_MAX | Max TP Rate For Cat |
| CAT_ACT_MIN | Min Allowed ACT To Run Cat Monitor |
| AIRM_MIN__A | Min Allowed Air Mass For Cells In Cat Monitor |
| CAT_ECT_MIN | Min Allowed ECT To Run Cat Monitor |
| CAT_EGRMIN | Min Allowed EGR To Run Cat Monitor |
| CAT_LD_MIN__A | Min Allowed Engine Load To Run Cat Monitor |
| CAT_N_MIN__A | Min Allowed RPM To Run Cat Monitor |
| CAT_VSMIN | Min Allowed Vechile VSS To Run Cat Monitor |
| MIDBED_MIN__A | Min Cat Midbed Temperature To Run Cat Monitor |
| CAT_REG_TEMP | Min Rear O2 Temperature To Run Cat Monitor |
| CAT_APT_FLG | Switch Allowed For Closed Throttle Counting |
| CAT_STBLE_TM | Duration For Cat To Stabilize |
| Manufacturer Name | Name |
|---|---|
| OBD_VBAT_MAX | Max Battery Volt To Run Test |
| OBD_VBAT_MIN | Min Battery Volt To Run Test |
| VBAT_ISIG_MN | Min VBAT To Run Inductive Sig |
| OBDII_MIL_SW | Obdii MIL Switch |
| OBDII_TST_SW | Obdii Test Switch |
| MIL_ODO_SW | Switch To Turn Off Distance Traveled Calc |
| Manufacturer Name | Name |
|---|---|
| CCM_MIN_AMB | CCM Min Ambient To Run |
| CCM_MIN_SOAK | CCM Min Soak Duration |
| CCM_MON_TM__A | CCM Monitor Duration |
| TPINP_LOAD_LOW | Max Engine Load For Engine Load Validation |
| TPINP_LOAD_HI | Min Engine Load For Engine Load Validation |
| Manufacturer Name | Name |
|---|---|
| DS_HEAT_TM | DS HEAT TM |
| EGO_LAM_LEAN | EGO LAM LEAN |
| EGO_LAM_RICH | EGO LAM RICH |
| LEAN_THRESH | LEAN THRESH |
| N_IDLE_CH | N IDLE CH |
| N_IDLE_SL | N IDLE SL |
| RICH_THRESH | RICH THRESH |
| TC_VEGO_FA | TC VEGO FA |
| Manufacturer Name | Name |
|---|---|
| CVS_FALT_CNT | Canister Vent Solenoid Limit For P1451 |
| CANV_THRES | Canister Vent Limit For P1451 |
| FN610A_SCP | Fueling Level To % Fueling W/O Saddle Tank |
| PGM_ACTSK_MX | Max ACT Soak Duration Above Ambient For Test |
| PGM_IDACT_MX | Max Air Temperature For Idle Soak Test |
| PGM_ECTSK_MX | Max ECT Soak Duration |
| PGM_PPM_TSTX | Max Flow In Ph0 To Enter Ph1 |
| PGM_TEMP_MAX | Max For Temperature Test |
| PGM_FLI_MAX | Max Fuel Level For Test |
| PGM_ID_LAMX | Max Lambda For Purge |
| PGM_LOAD_MAX | Max Engine Load For Purge Test |
| PGM_RST_CNT | Max Number Of Purge Monitor Tries Per Key On |
| PGM_P0_WMXI | Max Purge Flow For Idle Test |
| PGM_PS0_HI | Max Tank Press For Ph0 Deadband |
| FN_TP_DT_MXI | Max Tank Pressure Level Change To Abort Idle Test |
| FN_TP_DT_MX | Max Tank Pressure Level Change To Abort Test |
| PGM_TANK_MAX | Max Tank Pressure Level For Test |
| PGM_VAP_LIM | Max Tank Prs Change To Go From Ph4 To Ph5 |
| PGM_VAP_MAX | Max Tank Prs To Go From Ph4 To Ph5 |
| PGM_PS0_TM__A | Max Duration Allowed In Phase 0 Of Purge Test |
| PGM_PS1_TM__A | Max Duration Allowed In Phase 1 Of Purge Test |
| PGM_PS3_TM__A | Max Duration Allowed In Phase 3 Of Purge Test |
| PGM_PS4_TM__A | Max Duration Allowed In Phase 4 Of Purge Test |
| PGM_CRR_PHTM | Max Duration At Closed Throttle To Stop Phase 0 |
| PGM_IDACT_MN | Min Air Temperature For Idle Soak Test |
| PGM_BP_MIN | Min Barometric Pressure For Purge Monitor |
| PGM_ECTSK_MN | Min ECT Soak Duration |
| PG_FLW_LO | Min Flow In Ph0 To Go To Ph1 |
| PGM_TEMP_MIN | Min For Temperature Test |
| PGM_FLI_MIN | Min Fuel Level For Test |
| PGM_ID_LAMN | Min Lambda For Purge |
| PGM_LOAD_MIN | Min Engine Load For Purge Test |
| PGM_P0_FLMIN | Min Purge Flow To Abort Ph0 Test |
| PGM_VLV_MIN | Min Purge Valve Pressure Level Ratio For Test |
| PGM_ALTSK_MN | Min Soak Duration |
| PGM_PS0_LO | Min Tank Press For Ph0 Deadband |
| PGM_TANK_MIN | Min Tank Pressure Level For Test |
| PGM_IDVC_HLD | Min Tank Pressure Level To Increment Timer |
| PGM_IDCR_TM | Min Duration In Conditions To Beginning Ph1 Cruise Test |
| PGM_IDVC_TM | Min Duration To Hold Vacuum To Beginning Ph1 Cruise Test |
| PGM_VS_MIN | Min VSS For Test |
| PGM_RUN_CNT | Number Of Times Purge Can Run Key On Before MIL |
| PGM_STKO_LIM | Phase 4 Min Pressure Level For Stuck Open Valve |
| FNPGM_02LK_T | Purge .020" Leak Duration |
| PGM_FLW_STRT | Purge Flow To Beginning Monitor |
| FNPGM_IDLE_T | Purge Idle" Leak Duration |
| PGM_IDCRZ_SW | Purge Monitor Idle And Cruise Test Switch |
| PGM_IDLE_SW | Purge Monitor Idle Switch |
| FNPGM_PH2_TM | Purge Phase 2 Leak Duration |
| PG_REQ_ADD | Purge Requested Adder |
| PG_REQ_MUL | Purge Requested Multiplier |
| FN_02LK_BLDB | Tank Pressure Level Bleed Up Allowed For .020" Test |
| FN_IDLE_BLD2 | Tank Pressure Level Bleed Up Allowed Idle Test |
| FN_PGM_BLDB | Tank Pressure Level Bleed Up Allowed Purge Test |
| TPR_HI_ER | Tank Pressure Level Transducer High Deviation |
| TPR_LO_ER | Tank Pressure Level Transducer Low Deviation |
| TC_CANP | TC CANP |
| CANP_THRES | Limit For P0443 Code |
| PGM_ID_TM_MN | Duration After Beginning For Test |
| PGM_STRT_DLY__A | Duration After Beginning For Test 2 |
| CANP_OSM_TM | Duration For Monitoring Purge |
| CANV_OSM_TM__A | Duration For Monitoring Purge Valve |
| PGM_P1450_TM__A | Duration In Phase 0 To Check For Excessive Vacuum |
| PGM_RST_TM__A | Duration To Delay Period Purge Monitor After Reset |
| TPR_OFST_LIM | TPR OFST LIM |
| FN157B | Xnorm Canister Purge 34 |
| FN158 | Ynorm Canister Purge 34 |
| Manufacturer Name | Name |
|---|---|
| FLI_STK_TOL | FLI STK TOL |
| K_FUEL_CAL | K Fueling CAL |
| ULLAGE_FRAC | ULLAGE FRAC |
| ULLAGE_LVL | ULLAGE LVL |
| Manufacturer Name | Name |
|---|---|
| V_ADPAM_MAX | Max Air Flow For Fuel Monitor |
| V_ADPN_MAX | Max RPM For Fuel Monitor |
| V_ADPAM_MIN | Min Air Flow For Fuel Monitor |
| V_ADPN_MIN | Min RPM For Fuel Monitor |
| Manufacturer Name | Name |
|---|---|
| IAC_MON_TM | Iac Monitor Duration |
| ETC_CIB_COMP_MIN | Min Allowed Compensation For Closed In Bore |
| IAC_ER_TM1 | Duration At High Deviation For Code |
| IAC_ER_TM2 | Duration At Low Deviation For Code |
| Manufacturer Name | Name |
|---|---|
| ALPHAMIS | ALPHAMIS |
| BETAMISHI | BETAMISHI |
| BETAMISLO | BETAMISLO |
| BYPS_BRKPNT | BYPS BRKPNT 1 |
| FNCATMOD | Cat Temperature Limit Compensation Factor For Misfire |
| DACCELCAL_N | DACCELCAL N |
| DACCELCAL_PC | DACCELCAL PC |
| FNMISOK_97 | Inhibit Table Used By Misfire Monitor |
| V_MIS_NHYS | RPM To Turn Misfire Test On After BG |
| FNMISACT | FNMISACT |
| FNMISTR | FNMISTR |
| FNMISPCT_97 | Max Allowable Misfire Rate Before Fault |
| CF_DNDTI_MAX | Max DNDTI For Profile Compensation Adaptation |
| MIS_ECTMAX | Max ECT To Run Misfire Test |
| CF_LOAD_MAX | Max Engine Load For Profile Compensation Adaptation |
| CF_N_MAX | Max RPM For Profile Compensation Adaptation |
| V_MIS_NMAX | Max RPM To Perform Background Misfire Test |
| CF_VSBARMAX | Max VSS For Profile Compensation Adaptation |
| CF_MTR_MIN | Min Counts For Profile Compensation |
| CF_DNDTI_MIN | Min DNDTI For Profile Compensation Adaptation |
| MIS_ECTMIN | Min ECT To Run Misfire Test |
| CF_LOAD_MIN | Min Engine Load For Profile Compensation Adaptation |
| CF_N_MIN | Min RPM For Profile Compensation Adaptation |
| V_MIS_NMIN | Min RPM To Perform Background Misfire Test |
| MIS_NTQ_DEL | Min Engine Torque Drop For Misfire |
| MIS_MIN_TQ | Min Engine Torque For Misfire |
| CF_VSBARMIN | Min VSS For Profile Compensation Adaptation |
| MIS_AC_SW | MIS AC SW |
| MIS_CAT_CONF | MIS CAT CONF |
| MIS_OT_MAX | MIS OT Max |
| MIS_PTQ_DEL | MIS PTQ DEL |
| MIS_STRT_DLY | MIS STRT DLY |
| MIS_TIPIN | MIS TIPIN |
| MIS_TIPOUT | MIS TIPOUT |
| MIS1000_EWMA | MIS1000 EWMA |
| MIS200_EWMA | MIS200 EWMA |
| MISLEVEL1000 | Misfire Rate For Emissions Limit |
| MISHOT1000 | MISHOT1000 |
| MISHOT200 | MISHOT200 |
| MISID_NMAX | MISIS NMAX |
| FNMISPRMULT | Multiplier Table For Pair Limit |
| FN1615MIS | Engine Torque Table Used By Misfire Monitor |
| V_HMIS_MIN | V HMIS Min |
| FN070MIS | Xnorm Misfire Monitor 35 |
| FN034MIS | Ynorm Misfire Monitor 35 |
| Manufacturer Name | Name |
|---|---|
| EGOHT_VBATMX | Max Battery Voltage Level To Turn Heaters On |
| EGO_CM_N_MX | Max RPM For Present Monitor Test |
| EGO_CM_MAX | Max Tip Temperature For O2 Present Monitor |
| EGO_CM_TM | Min Heater On Duration For Present Monitor |
| EGO_CM_MIN | Min Tip Temperature For O2 Present Monitor |
| US_CUR_HI | Upstream Present Monitor High Limit |
| US_CUR_LOW | Upstream Present Monitor Low Limit |
| Manufacturer Name | Name |
|---|---|
| DSRD_FREQ | Requested Frequency For EGO Test |
| EGO_ER_OV_TM | EGO ER OV TM |
| EGO_LS_ENA | EGO LS ENA |
| MAX_EGO_VOLT | EGO Voltage Level For Fault |
| LEAN_AMP_M | Lean Amplitude Limit |
| EGO_ACT_MAX | Max ACT To Run EGO Monitor |
| EGO_LAM_DLMX | Max Change In Lambda To Run Monitor |
| EGO_ECT_MAX | Max ECT To Run EGO Monitor |
| FREQERR_BAND | Max Deviation From Requested Frequency Run Test |
| LDEGO_DLTMX | Max Engine Load Change To Run Test |
| LOAD_EGO_MAX | Max Engine Load To Run Test |
| NEGO_DLTMX | Max RPM Change To Run Test |
| N_EGO_MAX | Max RPM To Run EGO Monitor |
| LAMAVE_MAX | Max Short Term Fuel Trim To Run Test |
| EGO_TPR_MAX | Max Tank Pressure Level To Run Test |
| EGO_WIND_MET_TM | Max Duration To Meet Criteria |
| EGO_VSPD_DMX | Max VSS Change Inhibits Test |
| EGO_VSPD_MAX | Max VSS To Run Test |
| EGO_ECT_MIN | Min ECT To Run EGO Monitor |
| EGO_FREQ_MIN | Min Frequency EGO Is Considered Malfunctioning |
| LOAD_EGO_MIN | Min Engine Load To Run Test |
| RBIAS_EGO_MN | Min RBIAS For Fault |
| N_EGO_MIN | Min RPM To Run EGO Monitor |
| LAMAVE_MIN | Min Short Term Fuel Trim To Run Test |
| EGO_VSPD_MIN | Min VSS To Run Test |
| LAM_CYC_MAX | Number Of Fuel Cycles For Monitor W FAOSC |
| OV_TIME | OV Duration |
| EGO_HTR_SW | Switch To Permit EGO Monitoring |
| HTRCM_SW | Switch To Shut Off EGO Present Monitor |
| Manufacturer Name | Name |
|---|---|
| VSCNT | Failed VSS Up Counter |
| FNVMOV_LOAD | Engine Load For Inferred Movement |
| NE_VMOV_MAX | Max RPM Allowed For Inferred Movement |
| OS_MOV | Max Output VSS Allowed For Inferred Movement |
| TS_MOV | Max Turbine VSS Allowed For Inferred Movement |
| FNGRD_K_FACT | Engine Torque Converter K Factor |
| Manufacturer Name | Name |
|---|---|
| VCT_ST_ECT__A | ECT To Run VCT Monitor |
| VCT_FMEM_SW__A | VCT FMEM Switch |
| VCT_OBDII_SW | VCT OBDII SW |
| Manufacturer Name | Name |
|---|---|
| CTLOW | ECT For Cold Beginning |
| CTHIGH | ECT For Hot Beginning |
| FN311 | Fuel Non Feedback Tp |
| FN338 | Engine Load For Non Feedback Decels |
| LLDTM | Low Engine Load Non Feedback Timer |
| DCEVS | Min VSS For Non Feedback Deceleration |
| DCECTTM | Mn Tm At Closed Throttle For Non Feedback Deceleration |
| FN1311 | Non Feedback Delay Period |
| OLF_LAMBLEND | Non Feedback Delay Period Blending Ramp |
| MINDLY | Non Feedback Delay Period Timer For Wide Open Throttle |
| HEGO_WARM | Temperature For Front Hego To Go Feedback |
| HEGO_WARM_CL | Temperature For Front Hego To Go Non Feedback |
| TEMPFB | Temperature For Other Delays TEMP2 |
| V_KAMBAR_MAX | Limit To Set Adaptation Limit Code Too Lean |
| V_KAMBAR_MIN | Limit To Set Adaptation Limit Code Too Rich |
| V_LAMBAR_MAX | Limit To Set Fuel Limit Code Too Lean |
| V_LAMBAR_MIN | Limit To Set Fuel Limit Code Too Rich |
| FN_TCSTRT | Duration Delay Period For Feedback |
| OL_DELAYMAX | Duration To Delay Period Non Feedback |
| FN311X | Xnorm Open Feedback 36 |
| Manufacturer Name | Name |
|---|---|
| FNCHT2RV | CHT Volts To Degrees For Dual Resistor |
| FNCHT1RV | CHT Volts To Degrees For Single Resistor |
| HEDFHP | High VSS Fan Switch |
| Manufacturer Name | Name |
|---|---|
| ACT_ER_TM | ACT ER TM |
| ACT_LVL | ACT LVL |
| FNACT_SQRT | FNACT SQRT |
| Manufacturer Name | Name |
|---|---|
| AMB_ACC_SUB | Adder To Ambient When AC Is On |
| AMB_ACT_TOL | Delta From ACT Ambient To Begin Changing |
| AMB_DELTA | Delta From ACT To Ambient |
| AMB_ECT_MIN | Min ECT Allowed For Ambient Update |
| AMB_VS_MIN | Min VSS Allowed For Ambient Update |
| TC_INFAMB | Duration Constant For Inferred Ambient |
| Manufacturer Name | Name |
|---|---|
| RF_WARMRAIL | Ambient Temperature To Switch To Higher Pressure Level |
| TC_ADDER_LIM | ECT Theshold To Taper Off Duration Constant |
| FRT_ECT_LOCK | ECT Limit Inhibits FRT Duration Constant Mod |
| RF_FRTS_VMAX | FRT Sensor Max Voltage Level |
| RF_FRTS_VMIN | FRT Sensor Min Voltage Level |
| TC_FRT_SOAK | FRT Duration Constant Soak Temperature |
| FNFRT_WGT_R | Fuel Rail Temperature Compensation Factor Using ACT |
| FP_RTSNS_HP | Fuel Rail Temperature Level Switch |
| FNRT_FLOW | Fuel Temperature Multiplier Using Fuel Flow |
| FNFRTMUL_E | Fuel Rail Temperature Compensation Multiplier |
| FNFRTTC | Railtemp Duration Constant |
| FNFRTTC_ECT | Railtemp Duration Constant Using ECT |
| TC_ADDER_TM | Duration Limit For Duration Constant Modifacation |
| FRT_WGT_SOAK | Weighting Factor Of ACT&ECT During Soak |
| Manufacturer Name | Name |
|---|---|
| NLMTLO_UPSFT | 3rd Gear High VSS Limit |
| NLMTLO_1 | 3rd Gear High VSS Limit Exit |
| ESL_CTL_I_INI | ESL CTL I INI |
| INF_NEU_ISC | Inf Neu Isc |
| NDS_MAX_LD | Max Engine Load For Neutral |
| INJ_MAX_LOAD | Max Engine Load To Turn Off Injectors |
| INJ_MAX_N | Max RPM To Turn Off Injectors |
| NDS_MIN_LD | Min Engine Load For Neutral |
| OS_MX | Output Shaft VSS Limit |
| NLMTHI_0 | Rev Limit 0 On |
| NLMTNEUHI_0 | Rev Limit Neutral 0 On |
| TQ_VS_MAN | Rev Limit VSS To Exit Neutral Limiter |
| VSL_CTL_LMT | Throttle Based VSS Limit |
| ESL_CTL_LMT | Throttle RPM Limit |
| TQ_INTPRV_SW | Torque INTPRV SW |
| Manufacturer Name | Name |
|---|---|
| ESL_CTL_HYS | RPM Hysterisis Inhibits Limiting |
| ESL_CTL_OFS | ESL CTL OFS |
| ESL_CTL_KI | Int Gain Value Used For RPM Limiting Control |
| ESL_CTL_IMAX | Max I Term For RPM Limiting Control |
| ESL_CTL_IMIN | Min I Term For RPM Limiting Control |
| ESL_CTL_KP | Prop Gain Value Used For RPM Limiting Control |
| Manufacturer Name | Name |
|---|---|
| VSL_CTL_I_INI | Inital Integral Term For VSS Limit |
| VSL_CTL_KI | Int Gain Value Used For VSS Limiting Control |
| VSL_CTL_IMAX | Max I Term For VSS Limiting Control |
| VSL_CTL_IMIN | Min I Term For VSS Limiting Control |
| VSL_CTL_KP | Prop Gain Value Used For VSS Limiting Control |
| VSL_CTL_HYS | VSS Hysterisis Inhibits Limiting |
| Manufacturer Name | Name |
|---|---|
| FAO_DISABLE | FAOSC Inhibit Switch |
| F_PLEAN_MULT | Lean Multiplier For Rear O2 Bias |
| RBIAS_LAM_MX | Max AF For Integral Adaptation |
| RBIAS_AVG_MX | Max Allowable Rear Bias Average |
| RBIAS_ECT_MX | Max ECT For Rear Bias Control |
| RBIAS_INT_MX | Max Integral Term For Rear Bias Control |
| RBIAS_LD_MAX | Max Engine Load For Integral Adaptation |
| PROP_LD_MAX | Max Engine Load For Proportional Bias |
| DS_CUR_HI | Max Rear O2 Heater Present |
| RBIAS_N_MAX | Max RPM For Integral Adaptation |
| PROP_N_MAX | Max RPM For Proportional Bias |
| RBIAS_MAX | Max Total Allowed Rear Bias Control |
| VEGO_FAOS_MX | Max Voltage Level For Rear Bias Control |
| RBIAS_LAM_MN | Min AF For Integral Adaptation |
| RBIAS_AVG_MN | Min Allowable Rear Bias Average |
| RBIAS_ECT_MN | Min ECT For Rear Bias Control |
| FAOP_EGO_TMP | Min Ego Temperature For Rear Bias Control |
| RBIAS_INT_MN | Min Integral Term For Rear Bias Control |
| RBIAS_LD_MIN | Min Engine Load For Integral Adaptation |
| PROP_LD_MIN | Min Engine Load For Proportional Bias |
| DS_CUR_LOW | Min Rear O2 Heater Present |
| RBIAS_N_MIN | Min RPM For Integral Adaptation |
| PROP_N_MIN | Min RPM For Proportional Bias |
| RBIAS_MIN | Min Total Allowed Rear Bias Control |
| VEGO_FAOS_MN | Min Voltage Level For Rear Bias Control |
| RBIAS_VS_MIN | Min VSS For Rear Bias Control |
| RBIAS_CL_TM | Mn Duration In Feedback For Bias Trimg |
| EGOHT_HTR_HP | O2 Heater Array Switch |
| ACFNVEGO | Rear O2 Control Point Adder W A/C On |
| FNF_GRL_LEAN | Rear O2 Gain Cal When Lean |
| FNF_GRL_RICH | Rear O2 Gain Cal When Rich |
| EGO_2_CONFIG | Rear O2 Sensor Switch |
| DS_SWTPOINT | Rear O2 Sensor Switch Point |
| REGO_TM | REGO TM |
| F_PRICH_MULT | Rich Multiplier For Rear O2 Bias |
| RBIAS_LN_TM1 | Stability Duration 1 For Rear Bias Adaptation |
| RBIAS_LN_TM2 | Stability Duration 2 For Rear Bias Adaptation |
| DS_HTR_OFF__A | Temperature To Turn Off Rear O2 Heater |
| DS_HTR_ON__A | Temperature To Turn On Rear O2 Heater |
| TCRBIAS1 | Duration Constant 1 For Rear Bias Adaptation |
| TCRBIAS2 | Duration Constant 2 For Rear Bias Adaptation |
| TC_VEGO_FA_I | Duration Constant For Integral Control |
| FNFI_IL | VEGO Setpoint For FAOSC Integral Term |
| FNFP_IL | VEGO Setpoint For FAOSC Prop Term |
| FN041_VEGO | Ynorm Rear O2 Sensor 36 |
| Manufacturer Name | Name |
|---|---|
| RF_FFLLMUL | Adaptation Voltage Level Low Limit Multiplier |
| RF_FFULMUL | Adaptation Voltage Level High Side Limit Multiplier |
| RF_COLD_MOD | Cold Beginning Modifacation Switch |
| FNRF_LINEAR | Requested Pressure Level Drop Across Injectors |
| FNRF_EXTEND | Requested Pressure Level Drop Across Injectors W High Engine Load |
| FPDM_OFF | Duty Cycle When Pump Is Off |
| RF_FFDDBND | Feedforward Voltage Level Deadband |
| RF_MODE | Fixed Duty Cycle Mode Switch |
| RF_DC_CAL | Fixed Duty Cycle To Run In Fixed Mode |
| FPUMP_FREQ | FPUMP FREQ |
| FRP_ERRLMT | FRP ERRLMT |
| FLI_SCP_SW | Fuel Level Input Over SCP Switch |
| FP_DGAIN_MUL | Fuel Pump Gain Cal Derivative Term |
| RF_I_GAIN | Fuel Pump Gain Cal Integral Term |
| RF_P_GAIN | Fuel Pump Gain Cal Proportional Term |
| FPC_DC_MAX | Fuel Pump Max Duty Cycle |
| FPC_DC_MIN | Fuel Pump Min Duty Cycle |
| FNRF_SSFF | Fuel Pump Voltage Level Table |
| FRP_ERRTOL | Fuelpump Tst Quantity Of Fuel Pressure Level Drop Deviation |
| FRP_MID | Fuelpump Tst Deviation Buffer |
| FRP_RATE | Fuelpump Tst Max Rate Of Fuel Pressure Level Change |
| FRP_MIDTOL | Fuelpump Tst Pressure Level Below Allowed For Test |
| FNRF_COLD | Injector Pressure Level Drop Change When Cold |
| FNRF_BOIL | Injector Pressure Level Drop Change With ACT |
| F | Max Allowed Value Used For FP Flow |
| RF_FRDPS_MAX | Max Counts For IPS Sensor To Be Good |
| MAX_DPREF | Max DPREF |
| RF_FRDPS_MIN | Min Counts For IPS Sensor To Be Good |
| FP_FRTS_TM | P0183 Fault Timer Set High |
| FP_FRDPS_TM | P0190 P0193 Fault Timer Set High |
| FLI_ER_TM2 | P0463 Fault Timer Set High |
| FP_FPDM_TM | P1237 Fault Timer Set High |
| FNRF_DP_ADC | Pressure Level Sensor Transfer Relationship |
| DPREF_CLP | Sensor Limit To Prevent PID From Saturating |
| RF_FF_ADAPT | Switch To Turn On/Off Adaptation Fuel Pump Volt |
| RF_UPRATE | Duration Between Adaptation Updates |
| RF_DP_ERR_TC | Duration Constant For Delta P Across Injectors |
| FNRFNRM_FLOW | Xnorm Returnless Fueling Pump 37 |
| FNRFNRM_PDP | Ynorm Returnless Fueling Pump 37 |
| Manufacturer Name | Name |
|---|---|
| LUHTOT_SH | Hot Lock Enter Temperature |
| LUHTOT_CL | Hot Lock Exit Temperature |
| LOCK_ABL_ENA | Lock Able Permit Array |
| LOCK_ABL_ETC | Lock Able Permit Array Shift Capacity |
| CS_MAX_TIME | Max Duration To Spend In Cold Shift Mode |
| NELUMN | Min RPM To Lock |
| SRLKOT | Min VSS Ratio To Lock Hot Mode |
| VSLUMN | Min VSS To Lock |
| DD_TQ_RAT_UNLK | Pedal To Unlock For Engine Torque |
| FN_ABLE_TQ | Engine Torque Margin To Lock When Able |
| FN690 | Tot To Exit Cold Shift |
| Manufacturer Name | Name |
|---|---|
| FN12SF_4X4L | Trans Shift Schedule 12 4X4 Low |
| FN23SF_4X4L | Trans Shift Schedule 23 4X4 Low |
| FN34SF_4X4L | Trans Shift Schedule 34 4X4 Low |
| NE12S4L | Trans Wot Shift RPM 12 4x4 Low |
| NE23S4L | Trans Wot Shift RPM 23 4x4 Low |
| NE34S4L | Trans Wot Shift RPM 34 4x4 Low |
| Manufacturer Name | Name |
|---|---|
| FN1LHD | Trans Converter Lock 1st Hot |
| FN2LHD | Trans Converter Lock 2nd Hot |
| FN3LHD | Trans Converter Lock 3rd Hot |
| FN4LHD | Trans Converter Lock 4th Hot |
| FN1UHD | Trans Converter Unlock 1st Hot |
| FN2UHD | Trans Converter Unlock 2nd Hot |
| FN3UHD | Trans Converter Unlock 3rd Hot |
| FN4UHD | Trans Converter Unlock 4th Hot |
| Manufacturer Name | Name |
|---|---|
| ALG_LK_SW | Algorithm Lock Switch |
| GRAD_LK_ENA | Grade Lockup Permit |
| VS_ALG_LK_MN | Min VSS To Lock In Algorithm Mode |
| VS_ALG_LK_OT | Min VSS To Lock In Algorithm Mode Overtemp |
| VS_ALG_UNLK | Min VSS To Unlock In Algorithm Mode |
| VS_ALG_UNLK_OT | Min VSS To Unlock In Algorithm Mode Overtemp |
| GRAD_TM_MIN | Min Duration Until Shift For Lockup |
| Manufacturer Name | Name |
|---|---|
| VS_1PI | 2 1 Pullin Max VSS |
| VS_2PI | 3 2 Pullin Max VSS |
| VS_3PI | 4 3 Pullin Max VSS |
| TRS_AR | PRNDL Position To Gear Position |
| PDLTIM | Shifter Residence Timer |
| Manufacturer Name | Name |
|---|---|
| TCVSRSS | Filter For Vehicle Acceleration Rate Predictive |
| DOT_NE_MAX | Max Engine Acceleration Rate For Predictive Shift |
| NE_MAX_DNSFT | Max RPM Allowed After Downshift |
| VSRATE_MAX | Max Vehicle Acceleration Rate |
| DOT_NE_MIN | Min Engine Acceleration Rate For Predictive Shift |
| TPNEPUMIN | Min Pedal For Predictive Shift |
| NEPUMIN | Min RPM For Predictive Shift |
| NE12S | Trans Wot Shift RPM 12 |
| NE23S | Trans Wot Shift RPM 23 |
| NE34S | Trans Wot Shift RPM 34 |
| Manufacturer Name | Name |
|---|---|
| FNPPH_TQ_2 | 1 2 Shift PPH Funtion |
| FNPPH_TQ_3 | 2 3 Shift PPH Funtion |
| FNPPH_TQ_4 | 3 4 Shift PPH Funtion |
| Manufacturer Name | Name |
|---|---|
| FN12DD | Trans Shift Schedule 12 |
| FN21DD | Trans Shift Schedule 21 |
| FN23DD | Trans Shift Schedule 23 |
| FN32DD | Trans Shift Schedule 32 |
| FN34DD | Trans Shift Schedule 34 |
| FN43DD | Trans Shift Schedule 43 |
| Manufacturer Name | Name |
|---|---|
| PERF_TM_MIN | Quantity Of Duration Before Next Shift To Lock Conv |
| PERF_LK_ENA | Permit Cal Per Gear For Performance Mode |
| U12DLY | Duration To Delay Period Conv Lk After 12 |
| D21DLY | Duration To Delay Period Conv Lk After 21 |
| U23DLY | Duration To Delay Period Conv Lk After 23 |
| D32DLY | Duration To Delay Period Conv Lk After 32 |
| U34DLY | Duration To Delay Period Conv Lk After 34 |
| D43DLY | Duration To Delay Period Conv Lk After 43 |
| UWOTDLY | Duration To Delay Period Conv Lk At Wide Open Throttle |
| TPUNWOT | TP Above To Delay Period Conv Lk At Wide Open Throttle After Shift |
| FN1LSD | Trans Converter Lock 1st |
| FN2LSD | Trans Converter Lock 2nd |
| FN3LSD | Trans Converter Lock 3rd |
| FN4LSD | Trans Converter Lock 4th |
| FN1USD | Trans Converter Unlock 1st |
| FN2USD | Trans Converter Unlock 2nd |
| FN3USD | Trans Converter Unlock 3rd |
| FN4USD | Trans Converter Unlock 4th |
| Manufacturer Name | Name |
|---|---|
| FN1LTQD | Converter Lock 1st Compensation Factor For Torque Loss |
| FN2LTQD | Converter Lock 2nd Compensation Factor For Torque Loss |
| FN3LTQD | Converter Lock 3rd Compensation Factor For Torque Loss |
| FN4LTQD | Converter Lock 4th Compensation Factor For Torque Loss |
| FN1UTQD | Converter Unlock 1st Compensation Factor For Torque Loss |
| FN2UTQD | Converter Unlock 2nd Compensation Factor For Torque Loss |
| FN3UTQD | Converter Unlock 3rd Compensation Factor For Torque Loss |
| FN4UTQD | Converter Unlock 4th Compensation Factor For Torque Loss |
| Manufacturer Name | Name |
|---|---|
| NE12TQ | Shift RPM Torque Compensation Factor 12 |
| NE23TQ | Shift RPM Torque Compensation Factor 23 |
| NE34TQ | Shift RPM Torque Compensation Factor 34 |
| FN615TQ | Trans Shift Schedule Torque Compensation Factor |
| FN12TQD | Trans Shift Schedule Torque Compensation Factor 12 |
| FN21TQD | Trans Shift Schedule Torque Compensation Factor 21 |
| FN23TQD | Trans Shift Schedule Torque Compensation Factor 23 |
| FN32TQD | Trans Shift Schedule Torque Compensation Factor 32 |
| FN34TQD | Trans Shift Schedule Torque Compensation Factor 34 |
| FN43TQD | Trans Shift Schedule Torque Compensation Factor 43 |
| Manufacturer Name | Name |
|---|---|
| BPS_UNLK_SW | Sw To Force Unlock At Clsd Pedal Tow Haul Mode |
| Manufacturer Name | Name |
|---|---|
| FN12TRAC | Trans Shift Schedule 12 Traction Control |
| FN23TRAC | Trans Shift Schedule 23 Traction Control |
| FN34TRAC | Trans Shift Schedule 34 Traction Control |
| Manufacturer Name | Name |
|---|---|
| FN_1329 | Firing Order |
| SPK_ADD | Global Ignition Timing Adder |
| SPKAD_CYL | Global Ignition Timing Adder For Cylinders |
| SPK_MUL | Global Ignition Timing Multiplier |
| TQ_TIP_NMAX | Max RPM For Tip In Tq Control |
| FN2400 | Max Ignition Timing To Limit Combustion Pressure Level |
| FN741 | Max Ignition Timing When At Low Engine Load |
| SPUCLP | Max Ignition Timing Limit |
| TQ_TIP_NMIN | Min RPM For Tip In Tq Control |
| SPLCLP | Min Ignition Timing Limit |
| FN740A | Preignition Adder For AFR |
| FN751 | Preignition Adder For Ethanol |
| SPK_OCT_NUM1 | RON Octane For Borderline Ignition Timing Table |
| SPK_OCT_NUM2 | RON Octane For Borderline Ignition Timing Table 2 |
| FN2600 | Ignition Timing For Deceleration |
| SPK_LUGSW | Ignition Timing Lug Switch |
| SPK_LUG_TIM | Ignition Timing Lug Timer |
| FN701 | Ignition Timing Compensation Factor In Failsafe Cooling |
| FN723C | Ignition Timing Retard For Lugging Timer |
| FN017 | Xnorm Ignition Timing 38 |
| FN017E | Xnorm Ignition Timing 39 |
| FN013 | Ynorm Ignition Timing 38 |
| Manufacturer Name | Name |
|---|---|
| SPK_FMM_ADJ | Bdl Compensation Factor For Failed Knock Sensor |
| FN2270 | Borderline Knock Adjustment For 100% Ethanol |
| FN2200A | Borderline Knock Table |
| FN727 | Multiplier To BKT Cal Using % Ethanol |
| FN2225 | Octane Plug Ignition Timing Compensation Factor |
| FN2250 | Ignition Timing Adder After Engine Load Increase |
| FN2235A | Ignition Timing Adder Using EGR |
| FN2240C | Ignition Timing Adder For A/F When Non Feedback |
| FN2230 | Ignition Timing Retard Act Multiplier |
| FN2205 | Ignition Timing Retard CHT Multiplier |
| FN2220 | Ignition Timing Retard Ect Multiplier |
| FN725A | Ignition Timing Retard For Act |
| FN724B | Ignition Timing Retard For Ect |
| FN070X | Xnorm Borderline Knock 40 |
| FN015WA | Ynorm Borderline Knock 39 |
| Manufacturer Name | Name |
|---|---|
| FN2001A | Adder Max Allowed Ignition Timing Cold For RPM/Engine Load |
| FN2001A_PM | Adder Max Allowed Ignition Timing Cold For RPM/Engine Load Alcohol |
| FN2002D | Adder Max Allowed Ignition Timing Cold For TP/Cattemp |
| FN2002D_PM | Adder Max Allowed Ignition Timing Cold For TP/Cattemp W Alcohol |
| FN2000B_PM | Max Allowed Spk Cold Starts W Alcohol |
| CSSR_MAXISC | Max ISC Duty Allowed For Cold Beginning Ignition Timing |
| FN2000B | Max Allowed Ignition Timing Table Cold Starts |
| CSSR_MN_MVAC | Min Man Vac Allowed For Cold Beginning Ignition Timing |
| SPK_CSSR_EGR | SPK CSSR EGR |
| SPK_LOLD_STP | SPK LOLD STP |
| STAB_LOLD_AM | STAB LOLD AM |
| FN020D | Xnorm Cold Beginning 41 |
| FN028C | Xnorm Cold Beginning 42 |
| FN018F | Ynorm Cold Beginning 40 |
| FN029A | Ynorm Cold Beginning 41 |
| Manufacturer Name | Name |
|---|---|
| FN760 | Quantity Of Engine Torque Reserve For Idle |
| FNIFBS_D | Requested Idle Ignition Timing Drive |
| FNIFBS_N | Requested Idle Ignition Timing Neutral |
| FBS_ENTRY_TC | Feedback Ignition Timing Entry Duration Constant |
| FNFBSDERGAIN | Idle Ignition Timing Derivative Gain Cal |
| FNFBSDER_D | Idle Ignition Timing Derivative Gain Cal In Drive |
| FNFBSDER_N | Idle Ignition Timing Derivative Gain Cal In Neutral |
| FNSPKFBSGAIN | Idle Ignition Timing Prop Gain Cal Ignition Timing |
| FNECTFBSGAIN | Idle Ignition Timing Proportional Gain Cal Coolant |
| SPK_FBS_MIN | Lowest Ignition Timing Value Used For Idle Control |
| SPK_FBS_DLT | Min Allowed Retard From MBT For Idle |
| FN797 | Ignition Timing Retard To Engine Torque Ratio For Idle |
| FN767 | Engine Torque Ratio To Ignition Timing Retard For Idle |
| Manufacturer Name | Name |
|---|---|
| DWELL_HARN_MUL | Dwell Multiplier |
| FIXED_DWELL | Fixed Dwell Cal |
| COIL_NMAX | Max RPM For Coil Test |
| FNEODSPARK | Number Of Times Ignition Timing Plug |
| REPET_SPK_HI | Repetitive Ignition Timing Inhibit RPM |
| REPET_SPK_LO | Repetitive Ignition Timing Re Permit RPM |
| COIL_SELECT | Type Of Coil On Vehicle |
| FNEODN | Xnorm Dwell Coil 43 |
| FNEODLOAD | Ynorm Dwell Coil 42 |
| Manufacturer Name | Name |
|---|---|
| FN2300D | MBT Ignition Timing Table |
| FN2335 | Ignition Timing Adder For MBT Using EGR |
| SPK_PM_MBT | Ignition Timing Adder To MBT For Each % Of Ethanol |
| FN2150CMBA | Ignition Timing Adj For Combustion Noise |
| FN2150EMIA | Ignition Timing Adj For Emissions |
| FN730A | Ignition Timing Compensation Factor For MBT Using A/F Ratio |
| FN2320 | Ignition Timing Retard Ect Multiplier To MBT |
| FN014 | Xnorm MBT Ignition Timing 44 |
| FN013PCTA | Ynorm MBT Ignition Timing 43 |
| Manufacturer Name | Name |
|---|---|
| FN702 | Ignition Timing Compensation Factor For ECT |
| FN700A | Ignition Timing Compensation Factor For Pedal Position |
| FN2115B | Ignition Timing Retard For Piston Slap Noise |
| Manufacturer Name | Name |
|---|---|
| SPK_ARCH_MIN | Limit To Identify Ending Of Tip In |
| SPK_D_AIRCHG | Limit To Identify Tip In |
| Manufacturer Name | Name |
|---|---|
| FN059T | Density Compensation For Aircharge |
| FN040A | Estimated Aircharge Func RPM |
| ETC_MAP_CLP | Electronic Throttle Control Mapping Limit |
| MAP_LVL_CAL | Fault Level For Intermeittant Mapping Sensor |
| FNAIROFFST_C | Mapping At Zero Aircharge Closed IMRC |
| FNAIROFFST_O | Mapping At Zero Aircharge Open IMRC |
| AIR_TPDELBP | Mapping Diff From Barometric Pressure For Wide Open Throttle For TP Model |
| MAP_HI_ER | Mapping Sensor Max Counts |
| F | Max Allowed Value Used For Inferred Mapping |
| MAX_DELTOTLD | Max Delta Engine Load For SIP Test |
| MAP_TOL | Max Diff Btwn Inf And RAW Mapping To Pass Test |
| MAXLOAD | Max Engine Load Seen By Engine |
| F | Min Allowed Value Used For Inferred VAC |
| FNAIRQUAD_C | Quadratic Term For Mapping Calculation IMRC Closed |
| FNAIRQUAD_O | Quadratic Term For Mapping Calculation IMRC Open |
| FNAIRSLOPE_C | Slope Of Mapping Vs Aircharge Closed IMRC |
| FNAIRSLOPE_O | Slope Of Mapping Vs Aircharge Open IMRC |
| AIR_TP_PR_FK | TP Pressure Level Ratio Filter Constant |
| FN1052 | Voleff Compensation For ECT&ACT |
| FN022V | Xnorm VSS Density 48 |
| FNAIRN | Xnorm VSS Density 49 |
| FN052BP | Y Intercept Compensation Of Mapping Vs Aircharge |
| FN022V | Ynorm VSS Density 47 |
| FNAIRCAMPH | Ynorm VSS Density 48 |
| Manufacturer Name | Name |
|---|---|
| HP_4X4L | 4x4 Low Switch |
| ACPSEN_HP | Air Cond Pressure Level Sensor Switch |
| ACCS_HP | Air Cond Switch |
| BIHP | Brake Input Switch |
| PCOMP_SW | Canister Purge Compensation Switch |
| PCOMP_ENA_SW | Canister Purge Permit Switch |
| PRG_FLOW_SW | Canister Purge Flow Test Switch |
| PGM_SELECT | Canister Purge Selection Switch |
| CCL_CHK | Check Fueling Cap Bulb Check |
| CHT_SNS_HP | Cht Sensor Switch |
| ECT_SNS_HP | Ect Sensor Switch |
| EGR_HW_TYPE | EGR Switch |
| EOT_HP | EOT Switch |
| ETC_HP | Etc Switch |
| FFG_MAP_SW | Ffg Mapping Sw |
| IMRCSENSHP | Imrc Sensor Type |
| IMRCHP | Imrc Switch |
| EGR_MAF_SW | MAF Or SD EGR Switch |
| MAP_HP | Mapping Switch |
| VCT_SENSOR_NUM | Number Of Cam Sensors |
| NUMCYL_0 | Number Of Cylinders |
| OSS_PUL_PER_REV | Number Of Holes For OSS Sensor |
| KNK_SENSORS | Number Of Knock Sensors |
| PATS_DM_FLG | PATS Alternate Switch |
| PATS_DISABLE | PATS Inhibit Switch |
| INT_ALT_HP | Pcm Alternator Control Switch |
| PSPSHP | Powersteering Pressure Level Switch |
| PSPTHP | Powersteering Pressure Level Transducer Sw |
| PTO_HP | Pto Switch |
| SPD_HP | VSS Control Switch |
| TCIL_FL_SW | Switch To Flash TCIL For Fault |
| NEUTRAL_SW | Switch To Force To Neutral |
| TID_CPP_SW | Switch To Shut Off Continous CPP Test |
| THRMHP | Thermactor Switch |
| TQ_OSC_SW | Tip In Oscillation Switch |
| TQ_MODULE_SW | Engine Torque Module Switch |
| AUTO_TRNS_SW | Trans Auto Switch |
| TRLOAD | Trans Engine Load Switch |
| TCSS_HP | Transfer Case Switch |
| TSS_SW | TSS Switch |
| TID_CPP_MODE | Value Used For INDS When Clutch Is Pushed |
| VCAMHP | Variable Cam Switch |
| PCM_VSO_SW | PCM VSS Source Enable |
| VSHP_SCP | VSS Sensor Switch Over SCP |
| Manufacturer Name | Name |
|---|---|
| FN632 | A/F Ratio As Function Of Engine Torque Ratio |
| INERTIA_ENG | Engine Inertia |
| INERTIA_ENGT | Engine Inertia 2 |
| PCI_ENGINE | Inertia Of Engine |
| PCI_TRANS1 | Inertia Of Transmission |
| TQE_AMMX_MUL | Multiplier To Max AM Limit |
| FN612 | Multiplier To Engine Torque Using % Ethanol |
| FNACTQ_ACT | Portion Of A/C Tq Model Determined By ACT |
| FNACTQ_PRES | Portion Of A/C Tq Model Determined By Pressure Level |
| FNACTQ_N | Portion Of A/C Tq Model Determined By RPM |
| FN766 | Ignition Timing Retard To Engine Torque Ratio |
| FNTR_SPK_LIN | Ignition Timing Engine Torque Ratio Linear |
| FNTR_SPK_SQR | Ignition Timing Engine Torque Ratio Squared |
| FN623 | Engine Torque Compensation Factor As Function Of A/F Ratio |
| FN799 | Engine Torque Ratio To Ignition Timing Retard |
| TQEIND_SFBAS | Engine Torque Safety Factor |
| FNTQE_IND | Engine Torque Table |
| FNTQE_FRCECT | Engine Torque Table Friction Cold |
| FNTQ_NORM_N | Xnorm Engine Torque Calculation 50 |
| FNTQE_NOR_LD | Ynorm Engine Torque Calculation 49 |
| FNTQ_NORM_LD | Ynorm Engine Torque Calculation 50 |
| Manufacturer Name | Name |
|---|---|
| FNRMPOFF1 | CC Open Ramp Off Rate Command |
| CCAD_ENA_AR | Converter Adaptation Permit Array |
| CCAD_ECT_MIN | Converter Clutch Lowest Adaptation ECT |
| FNBOOSTM | Converter Clutch Boost Duration |
| CCC_BOOST_DC | Duty Cycle To Use In Boost Mode |
| K_CLUTCH | Gain Cal Of Converter Clutch Plate Psi/Ft Lb |
| MAXSLIP1 | Max Quantity Of Requested Slip |
| AC_CTL_OFF | Max Exit Duration For Converter Slip W/AC |
| SRLK_MAX | Max VSS Ratio For Lockup |
| FN_NO_RATE_UNLK | OPS Rate Command To Unlock Converter |
| TQOREQ_ULK_H | Output Shaft Tq Above To Lock |
| TQOREQ_ULK_L | Output Shaft Tq Below To Unlock |
| TIPINRATE_NEGSLIP | Pedal Rate Command Above To Unlk For Neg Slip |
| FNPWM_OFFSET | PWM Solenoid Bias |
| TQOREQRATE_N | Rate Command Of Change Of OPS Tq Above To Unlock |
| TQOREQRATE_P | Rate Command Of Change Of OPS Tq Below To Unlock |
| BOOST_DRP | Slip For Change From Boost To Mid Ramp |
| SPD_RAT_NEGSLIP_UNLK | Spd Ratio Above To Unlk At CT Neg Slip |
| FN_SRLK | VSS Ratio To Lock Converter |
| FN2SLPSD | Steady State Engine Torque Conv Slip 2nd Gear |
| FN3SLPSD | Steady State Engine Torque Conv Slip 3rd Gear |
| FN4SLPSD | Steady State Engine Torque Conv Slip 4th Gear |
| CC_EN_SLP_CN | Sw Allowed For Controlled Slip |
| SW_BOOST | Sw To Use Converter Clutch Boost |
| BOO_UNLK_SW | Swith Allowed For Unlock With Brake |
| TPUNBRK | TPS To Not Unlock W Brake |
| TPUNCT | TPS To Open Conv At Closed Thr |
| TIPINRATE_H | Throttle Rate To Unlock Hitp Tip In |
| TIPOUTRATE_H | Throttle Rate To Unlock Hitp Tip Out |
| TIPINRATE_L | Throttle Rate To Unlock Lowtp Tip In |
| TIPOUTRATE_L | Throttle Rate To Unlock Lowtp Tip Out |
| NO_RATE_UNLK_DLY | Duration For Unlk For Rate Based Unlk |
| AC_CTL_TM | Duration Allowed For Converter Slip W/AC |
| CTDLY | Duration To Delay Period Lockup During Tip In |
| OTCTDLY | Duration To Delay Period Lockup During Tip In Over Temperature |
| BRKRLCKTM | Duration To Remain Unlocked After Brake Input |
| UNC_RMP_RATE | Unconditional Unlock Ramp Rate Command |
| FN067DD | Xnorm Misc 60 |
| FN114A | Ynorm Misc 70 |
| FN114B | Ynorm Misc 71 |
| FN114C | Ynorm Misc 72 |
| Manufacturer Name | Name |
|---|---|
| ULSF_MAX_STATE | CC State To Signal Unlk To Unlk Shift |
| Manufacturer Name | Name |
|---|---|
| FNMRTM | Adaptation Mid Ramp Target Duration |
| FNMREDCAPN | Adaptation Mid Ramp Negative Delta Tm Err To Fraction Of Bias Capacity |
| FNMREDCAPP | Adaptation Mid Ramp Positive Delta Tm Err To Fraction Of Bias Capacity |
| FNSTREDCAPN | Adaptation Stroke Negative Delta Duration To Bias Capacity Fraction |
| FNOL_UP_ADD2 | Added Capacity For Conv Ramp During Shifts |
| FNOL_NO_ADD2 | Added Capacity For Conv Ramp Non Shift |
| FNLLUPCHMULT | Capacity Change Using TP |
| FNCCLOWLCK | CC Low Lockup Capacity |
| FNDTQOFF | CC Mid Ramp Bias |
| FNDTQSOFF | CC Mid Stroke Bias |
| FNLLUPTPMUL2 | Conv Clutch LL TP Mult In 2nd Gr |
| FNLLUPTPMUL3 | Conv Clutch LL TP Mult In 3rd Gr |
| FNLLUPTPMUL4 | Conv Clutch LL TP Mult In 4th Gr |
| FNLLUPTPMUL5 | Conv Clutch LL TP Mult In 5th Gr |
| FNLLUPTPMUL6 | Conv Clutch LL TP Mult In 6th Gr |
| CC_RMP_MUL | Conv Clutch Lockup Ramp Multiplier |
| CC_RMP_OFF | Conv Clutch Lockup Ramp Bias |
| LL_PRE_RAMP | Conv Clutch Preshift Ramp Rate Command |
| FNLLUPTRG2 | Conv Clutch Slip Target In 2nd Gr |
| FNLLUPTRG3 | Conv Clutch Slip Target In 3rd Gr |
| FNLLUPTRG4 | Conv Clutch Slip Target In 4th Gr |
| FNLLUPTRG5 | Conv Clutch Slip Target In 5th Gr |
| FNLLUPTRG6 | Conv Clutch Slip Target In 6th Gr |
| FNLLUPDCAP2 | Conv Clutch Strt Capacity In 2nd Gr |
| FNLLUPDCAP3 | Conv Clutch Strt Capacity In 3rd Gr |
| FNLLUPDCAP4 | Conv Clutch Strt Capacity In 4th Gr |
| FNLLUPDCAP5 | Conv Clutch Strt Capacity In 5th Gr |
| FNLLUPDCAP6 | Conv Clutch Strt Capacity In 6th Gr |
| LL_DN_INT | Lock To Lock Downshift Intercept |
| LL_DN_SLIP | Lock To Lock Downshift Slip |
| LL_DN_SLOPE | Lock To Lock Downshift Slope |
| FNLLUPSTEP | Lock To Lock Preshift Hold Bias |
| FNLMPRMP | Lock To Lock Preshift Ramp Rate Command |
| LL_UP_INT | Lock To Lock Upshift Intercept |
| FNTNTMRMP | Lock To Lock Upshift Mid Ramp Rate Command |
| LL_UP_SLOPE | Lock To Lock Upshift Slope |
| FNTQMIN12A | Min Engine Torque For Converter 12 Shift |
| FNTQMIN23A | Min Engine Torque For Converter 23 Shift |
| FNTQMIN34A | Min Engine Torque For Converter 34 Shift |
| FNTQMIN45A | Min Engine Torque For Converter 45 Shift |
| FNTQMIN56A | Min Engine Torque For Converter 56 Shift |
| CC_TCAP_LK | Min Tq Capacity When Going To Locked |
| FNLLUPCHMBIG | Multipiler For Reduction In Adaptation |
| FNSTROLNON | Open To Lock Non Shift Stroke Ramp Rate Command |
| FNSTROLUP2 | Open To Lock Up Shift Stroke Ramp Rate Command |
| FNSTROLUP3 | Open To Lock Upshift Stroke Ramp Rate Command |
| FNNEOPEN | Predicted Open Converter Slip For Ending Stroke |
| FNBIGSLIP2 | Preshift Capacity Adjustment 2nd Gear |
| FNBIGSLIP3 | Preshift Capacity Adjustment 3rd Gear |
| FNBIGSLIP4 | Preshift Capacity Adjustment 4th Gear |
| FNBIGSLIP5 | Preshift Capacity Adjustment 5th Gear |
| FNBIGSLIP6 | Preshift Capacity Adjustment 6th Gear |
| FNSTRKRMPN | Ramp Rate Command In Stroke Mode For Open To Lock Non Shifting |
| CLU_RMP_RATE | Ramp Rate When Exiting Feedback Control |
| FNSTRADPTM | Stroke Adaptation Target Duration For Engagements |
| FNSTREDCAPP | Stroke Capacity Bias Compensation On Positive Stroke Duration Deviation |
| FNOL_UP_RMP2 | Engine Torque Converter Lockup Rate After Upshift |
| FNTCRMP_4 | Tq Converter Lockup Rate Command Lock To Lock Shift |
| FNXCCTORQ | Xnorm Lockup Rate Command 56 |
| FNXLTQRMP | Xnorm Lockup Rate Command 57 |
| FNSTRTMEXN | Xnorm Lockup Rate Command 58 |
| FNSTRTMEXP | Xnorm Lockup Rate Command 59 |
| FNYNTBART | Ynorm Lockup Rate Command 68 |
| FNYLSARMP | Ynorm Lockup Rate Command 69 |
| Manufacturer Name | Name |
|---|---|
| CC_KC_FAC | Overall PID Gain Value Used For Controlled Slip |
| Manufacturer Name | Name |
|---|---|
| FNTQ_ASTALL | Min Engine Torque Allowed |
| TQ_NO_LMT | Engine Torque Limit When No Limit Is Requested |
| TQRT_RMP_TM | Engine Torque Ramp Rate Duration |
| FNTR_LAM_LVL | Engine Torque Reduction A/F Authority |
| FNTR_SAI_SET | Engine Torque Reduction By Ignition Timing Only |
| FNTR_SPK_LVL | Engine Torque Reduction Ignition Timing Authority |
| Manufacturer Name | Name |
|---|---|
| CC_TCAP_MAX | Max Allowed Engine Torque Capacity For Conv Clutch |
| TQRT_NO_LMT | Shifting Engine Torque Rate Limit |
| TQMGT_ID | Engine Torque Management Switch |
| RAT_LM_UPC | Engine Torque Rate Limit |
| TQRATLM_SW | Engine Torque Rate Limit Switch |
| RAT_LM_UPS | Engine Torque Rate Limit High Side Limit |
| TQ_LM_GR | Engine Torque Truncation Table |
| Manufacturer Name | Name |
|---|---|
| TRC_TQTST | Requested Engine Torque When Test Switch Is Used |
| TRC_DRVL_OPT | Switch To Select Axle Or Driveline Engine Torque |
| TRAC_TST_SW | Traction Control Test Switch |
| Manufacturer Name | Name |
|---|---|
| FNHYD_DLY_U1 | Clutch Fill Duration 12 Shift |
| FNHYD_DLY_D2 | Clutch Fill Duration 21 Shift |
| FNHYD_DLY_U2 | Clutch Fill Duration 23 Shift |
| FNHYD_DLY_D3 | Clutch Fill Duration 32 Shift |
| FNHYD_DLY_U3 | Clutch Fill Duration 34 Shift |
| FNHYD_DLY_D4 | Clutch Fill Duration 43 Shift |
| FNHYD_DLY_U4 | Clutch Fill Duration 45 Shift |
| FNHYD_DLY_D5 | Clutch Fill Duration 54 Shift |
| TSTBCSDC | Duty Cycle To Lock In |
| NEDROP | RPM Drop For Shift |
| MSFTGR | Gear To Lock In To |
| TSTCPCPRS | Pressure Level To Lock Converter Manually |
| PCPOF_PRS1 | Pressure Level Used On Power Off Shifts |
| SWBCTST | Switch To Lock Converter |
| SW_MSF | Switch To Lock In Gear |
| NEPU_SW | Switch To Use RPM Anticipated Shifts |
| FNTQ_PR_MDF3 | Limit For Power Off Shift |
| FNTQ_PR_MDN2 | Limit For Power On Shift |
| TSTTCAP1 | Engine Torque Capacity When Locked In |
| FNTOTDLY | TOT Delay Period Multiplier |
| TOT_OTEMP_S | Trans Temperature For Entering Over Temperature |
| TRGRMPTM_A | Trigger For Ramp Duration Determination |
| VSU4HOT | Wide Open Throttle RPM For Overtemp |
| TNRM_ID | Xnorm Trans 51 |
| TNRM_VS | Ynorm Trans 51 |
| Manufacturer Name | Name |
|---|---|
| PCMS_PSC_TRG | Percent Shift Complete For 3 2 |
| PC_TSLAP1 | Duration Compensation Factor For Boost Since Last Engagement |
| TMVEDN | Duration To Verify Downshift |
| TMVEUP | Duration To Verify Upshift |
| PCNRM_TSL | Ynorm Gear Timing 52 |
| Manufacturer Name | Name |
|---|---|
| PTO_DLY_TM | PTO Converter Lock Delay Period Duration |
| CCPTO_PRS | PTO Pressure Level To Use To Lock Converter |
| Manufacturer Name | Name |
|---|---|
| PCADD_PRS | Global Pressure Level Adder |
| PCMULT_PRS | Global Pressure Level Multiplier |
| PCMX_PRS | Max Allowed Pressure Level |
| PCMN_PRS | Min Allowed Pressure Level |
| PCSFTMN_PRS | Min Shifting Pressure Level |
| PCDN_MOD | Shift Pressure Level Multiplier Cold |
| TNRM_GR | Xnorm Trans Pressure Level 52 |
| TNRM_TOT9 | Ynorm Trans Pressure Level 53 |
| Manufacturer Name | Name |
|---|---|
| PC_UP2_MOD1 | 1 2 Shift Pressure Level Multiplier Cold |
| PC12_BST_NT | Added Pressure Level For Turbine VSS 12 Shift |
| PC12_PFL2 | Pressure Level Modifer During Shift 12 Shift |
| PC21_PFL2 | Pressure Level Modifer During Shift 21 Shift |
| APCTARGST12 | Target Slip Duration 12 Shift |
| PC12_DYN1 | Trans Tv Pressure Level 12 |
| PC21_DYN1 | Trans Tv Pressure Level 21 |
| TNRM_TRB_TQ1 | Xnorm 1 2 1 Shift 53 |
| TNRM_PSC1 | Xnorm 1 2 1 Shift 54 |
| TNRM12_VS | Ynorm 1 2 1 Shift 54 |
| TNRM21_VS | Ynorm 1 2 1 Shift 55 |
| Manufacturer Name | Name |
|---|---|
| PC13_PFL2 | Pressure Level Modifer During Shift 13 Shift |
| PC31_PFL2 | Pressure Level Modifer During Shift 31 Shift |
| PC13_DYN1 | Trans Tv Pressure Level 13 |
| PC31_DYN1 | Trans Tv Pressure Level 31 |
| TNRM13_VS | Ynorm 1 3 1 Shift 56 |
| TNRM31_VS | Ynorm 1 3 1 Shift 57 |
| Manufacturer Name | Name |
|---|---|
| PC14_PFL2 | Pressure Level Modifer During Shift 14 Shift |
| PC24_PFL2 | Pressure Level Modifer During Shift 24 Shift |
| PC41_PFL2 | Pressure Level Modifer During Shift 41 Shift |
| PC42_PFL2 | Pressure Level Modifer During Shift 42 Shift |
| PC14_DYN1 | Trans Tv Pressure Level 14 |
| PC24_DYN1 | Trans Tv Pressure Level 24 |
| PC41_DYN1 | Trans Tv Pressure Level 41 |
| PC42_DYN1 | Trans Tv Pressure Level 42 |
| PCMS_DYN | Trans Tv Pressure Level Multimode 42 |
| TNRM14_VS | Ynorm 1 4 2 4 2 4 1 Shift 58 |
| TNRM24_VS | Ynorm 1 4 2 4 2 4 1 Shift 59 |
| TNRM41_VS | Ynorm 1 4 2 4 2 4 1 Shift 60 |
| TNRM42_VS | Ynorm 1 4 2 4 2 4 1 Shift 61 |
| Manufacturer Name | Name |
|---|---|
| PC_UP3_MOD1 | 2 3 Shift Pressure Level Multiplier Cold |
| PC23_BST_NT | Added Pressure Level For Turbine VSS 23 Shift |
| PC23_PFL2 | Pressure Level Modifer During Shift 23 Shift |
| PC32_PFL2 | Pressure Level Modifer During Shift 32 Shift |
| APCTARGST23 | Target Slip Duration 23 Shift |
| PC23_DYN1 | Trans Tv Pressure Level 23 |
| PC32_DYN1 | Trans Tv Pressure Level 32 |
| TNRM23_VS | Ynorm 2 3 2 Shift 62 |
| TNRM32_VS | Ynorm 2 3 2 Shift 63 |
| Manufacturer Name | Name |
|---|---|
| PC_UP4_MOD1 | 3 4 Shift Pressure Level Multiplier Cold |
| PC34_PFL2 | Pressure Level Modifer During Shift 34 Shift |
| PC43_PFL2 | Pressure Level Modifer During Shift 43 Shift |
| APCTARGST34 | Target Slip Duration 34 Shift |
| PC34_DYN1 | Trans Tv Pressure Level 34 |
| PC43_DYN1 | Trans Tv Pressure Level 43 |
| TNRM34_VS | Ynorm 3 4 3 Shift 64 |
| TNRM43_VS | Ynorm 3 4 3 Shift 65 |
| Manufacturer Name | Name |
|---|---|
| PCSFT_INT1 | Shifting Intercept |
| PCSFT_SLP1 | Shifting Slope |
| Manufacturer Name | Name |
|---|---|
| PCES_DLT_PRS1 | Holding Pressure Level Non Shifting |
| PCLUBE_PRS | Min Pressure Level Using VSS |
| PCSTC_INT | Non Shifting Intercept Using Gear |
| PCSTC_SLP | Non Shifting Slope Using Gear |
| PCSTC_MAN | Static Capacity For Each Gear |
| PCPN_PRS | TV Pressure Level In Park And Neutral |
| Manufacturer Name | Name |
|---|---|
| FN622J | Coast Clth Pressure Level Adder |
| FN622B | Coast Clth Pressure Level Multiplier |
| FN622M | Direct Clth Pressure Level Adder |
| FN622E | Direct Clth Pressure Level Multiplier |
| PCL_INT | Line Pressure Level Intercept 1st Gear |
| PCL_INT_234 | Line Pressure Level Intercept 2nd 3rd 4th Gear |
| PCL_SLP | Line Pressure Level Slope 1st Gear |
| PCL_SLP_234 | Line Pressure Level Slope 2nd 3rd 4th Gear |
| FN622K | OD Pressure Level Adder |
| FN622C | OD Pressure Level Multiplier |
| Manufacturer Name | Name |
|---|---|
| FNBOOSTOT | Boost Multiplier For CC |
| Manufacturer Name | Name |
|---|---|
| PCENG_BST_TM1 | Engagement Boost Duration |
| PCENG_DD1 | Engagement Pressure Level Using Pedal Position |
| PCENG_N_H1 | Engagement Pressure Level Hold Prs RPM |
| PCENG_DD_H1 | Engagement Pressure Level Hold Prs Pedal Position |
| PCENG_TOT_H1 | Engagement Pressure Level Hold Prs Tot |
| PCENG_N_R1 | Engagement Pressure Level Ramp Rate RPM |
| PCENG_DD_R1 | Engagement Pressure Level Ramp Rate Pedal Position |
| PCENG_TOT_R1 | Engagement Pressure Level Ramp Rate Tot |
| PCENG_TM1 | Engagement Pressure Level Ramp Duration |
| PCENG_N_S1 | Engagement Beginning Pressure Level Using RPM |
| PCENG_TOT_S1 | Engagement Beginning Pressure Level Using TOT |
| TQM_DD_TRANS | Min TP For Tqmod For Engagements |
| TQM_ENGG_SW | Switch Inhibits Tqmod For Engagements |
| TNRM_ENG1 | Xnorm Engagements 55 |
| TNRM_DD | Ynorm Engagements 66 |
| TNRM_N | Ynorm Engagements 67 |
| Manufacturer Name | Name |
|---|---|
| ECT_TQM | Min ECT For Engine Torque Reduction On Shifts |
| TQMGT_SW | Switch To Shut Off All Engine Torque Reduction |
| TQM_SFT_SW | Switch To Shut Off Engine Torque Reduction On Shifts |
| TQTRC_SW | Switch To Shut Off Engine Torque Truncation |
| TQM12_TR1 | Engine Torque Reduction 12 Shift |
| TQM13_TR1 | Engine Torque Reduction 13 Shift |
| TQM14_TR1 | Engine Torque Reduction 14 Shift |
| TQM21_TR2 | Engine Torque Reduction 21 Shift |
| TQM23_TR1 | Engine Torque Reduction 23 Shift |
| TQM24_TR1 | Engine Torque Reduction 24 Shift |
| TQM31_TR2 | Engine Torque Reduction 31 Shift |
| TQM32_TR2 | Engine Torque Reduction 32 Shift |
| TQM34_TR1 | Engine Torque Reduction 34 Shift |
| TQM41_TR2 | Engine Torque Reduction 41 Shift |
| TQM42_TR2 | Engine Torque Reduction 42 Shift |
| TQM43_TR2 | Engine Torque Reduction 43 Shift |
| Manufacturer Name | Name |
|---|---|
| FILFRC | Cylinder Air Charge Ratio Below To Use Deceleration Multiplier |
| ACDC_TI_LIM | Tip In Lead Compensation Limit |
| ACDC_TO_LIM | Tip Out Lead Compensation Limit |
| FNTFC_GN | Transient Fuel Gain Cal Acceleration |
| FNTFC_GN_VT | Transient Fuel Gain Cal Acceleration Beginning Up |
| FNTFC_DGN | Transient Fuel Gain Cal Deceleration |
| FNTFC_DGN_VT | Transient Fuel Gain Cal Deceleration Beginning Up |
| FNTFC_GN_CM | Transient Fuel Gain Value Used For IMRC Acceleration |
| FNTFC_DGN_CM | Transient Fuel Gain Value Used For IMRC Deceleration |
| FNTFC_GNMULT | Transient Fuel Gain Cal Multiplier |
| FN285 | Transient Fueling MULT For IMRC When Closing |
| FN286 | Transient Fueling MULT For IMRC When Opening |
| FNTFC_TC_VT | Transient Fuel Duration Constant Acceleration Beginning Up |
| FNTFC_DTC_VT | Transient Fuel Duration Constant Deceleration Beginning Up |
| FNTFC_TC_CM | Transient Fuel Duration Constant For IMRC Acceleration |
| FNTFC_DTC_CM | Transient Fuel Duration Constant For IMRC Deceleration |
| FNTFC_TC | Transient Fuel Duration Contstant Acceleration |
| FNTFC_DTC | Transient Fuel Duration Contstant Deceleration |
| FN022F | Xnorm Transient Fueling 61 |
| FN022CM | Xnorm Transient Fueling 62 |
| FN022VT | Xnorm Transient Fueling 63 |
| FN039T | Ynorm Transient Fueling 73 |
| FN018CM | Ynorm Transient Fueling 74 |
| FN018T | Ynorm Transient Fueling 75 |
| Manufacturer Name | Name |
|---|---|
| FNTFC_GN_FF | Acceleration Gain Cal Multiplier With 85% Ethanol |
| FNTFC_TC_FF | Acceleration Duration Contstant Multiplier 85% Ethanol |
| FNTFC_DGN_FF | Deceleration Multiplier With 85% Ethanol |
| FNTFC_DTC_FF | Duration Contstant Deceleration With 85% Ethanol |
| Manufacturer Name | Name |
|---|---|
| FN551 | Cam Angle At Or Near Idle Using ACT |
| FN550 | Cam Angle At Or Near Idle Using ECT |
| CAM_LAG_B2 | Cam High VSS Bias |
| CAM_LAG_M2 | Cam High VSS Slope |
| CAM_LAG_BKPT | Cam High Low VSS Breakpoint |
| CAM_LAG_B1 | Cam Low VSS Bias |
| CAM_LAG_M1 | Cam Low VSS Slope |
| CAM_DC_A0 | Coeficient 0 For Cam Duty Cycle |
| CAM_DC_A1 | Coeficient 1 For Cam Duty Cycle |
| FN0235A | Compensation For Cam Actuator |
| D_GAINA | Derivative Gain Cal When Advancing Cam |
| D_GAINR | Derivative Gain Cal When Retarding Cam |
| MNVCT_CH | RPM Inhibits VCT |
| MNVCT_SL | RPM To Permit VCT |
| FN555 | Targeted Deviation Using ECT |
| FN5550A1_TQ | Targeted Deviation In Cam Angle |
| FNFF_EOT | Feed Forward Gain Cal Using EOT |
| CAM_A_TC | Filter For Raw Cam Input |
| I_GAIN | Integral Gain Cal Variable Cam |
| FNEOTB | Max Cam Angle As Function Of EOT |
| MXNVCT | Max Vct RPM |
| VCT_N_MAX | Max Vct RPM 2 |
| CAM_PID_MIN | Min PID Gain Cal |
| CAM_OL_DC | Non Feedback Duty Cycle When Forced By Switch |
| CAM_OL_SW | Non Feedback VCT Switch |
| P0021_LVL | P0021 Fault Level Bank 2 |
| P0022_LVL | P0022 Fault Level Bank 2 |
| P0344_ERRLVL | P0344 Deviation Level |
| P_GAINA | Prop Gain Cal When Advancing Cam Close To Target |
| P_GAINR | Prop Gain Cal When Retarding Cam Close To Target |
| FNP_GAINA | Proportional Gain Cal Advancing Direction |
| FNP_GAINR | Proportional Gain Cal Retarding Direction |
| FN2262_CLOSED | Ignition Timing Adder To BDL Table For VCT W IMRC Closed |
| FN2262_OPEN | Ignition Timing Adder To BDL Table For VCT W IMRC Open |
| FN2362_CLOSED | Ignition Timing Adder To MBT Table For VCT W IMRC Closed |
| FN2362_OPEN | Ignition Timing Adder To MBT Table For VCT W IMRC Open |
| VCT_PGAIN_EOT_SW | Switch To Select Prop Gain Cal Using EOT |
| VCT_FF_SW | Switch To Use Feed Forward Using EOT |
| CIDTSTLVL | Test Level For Code P0340 |
| FN556 | Variable Cam Angle Delay Period At Startup |
| FN5520_LOAD_C | Variable Cam Angle Engine Load IMRC Closed |
| FN5520_LOAD_O | Variable Cam Angle Engine Load IMRC Open |
| FN5521A1_PTQ | Variable Cam Angle Max Retard Limit Power |
| FN552A | Variable Cam Angle Compensation Factor For Air Temperature |
| FN552E | Variable Cam Angle Compensation Factor For ECT |
| FN5520_TQ_C | Variable Cam Angle Engine Torque IMRC Closed |
| FN5520_TQ_O | Variable Cam Angle Engine Torque IMRC Open |
| VCT_CONFIG | VCT Configuration Register |
| VCT_SRC_SW | Vct Table Y Axis Switch |
| FN016A | Xnorm Variable Cam 64 |
| FN016C | Xnorm Variable Cam 65 |
| FNVCT_BANK | Xnorm Variable Cam 66 |
| FN_CAM | Ynorm Variable Cam 76 |
| FN012A_LOAD | Ynorm Variable Cam 77 |
| FN012A1_TQ | Ynorm Variable Cam 78 |
| FN026A1_PTQ | Ynorm Variable Cam 79 |
| FN020G | Ynorm Variable Cam 80 |
| Manufacturer Name | Name |
|---|---|
| RTAXLE_MXCLP | Max Axle Ratio For VID Block |
| RT_AXLE_MX | Max Axle Ratio That Is Certified |
| VID_NOV_MX | Max N/V For VID Block |
| VID_SPD_LMT_MAX | Max VSS Limit For VID Blockkph |
| TIRE_MXCLP__A | Max Tire Revs For VID Block |
| TIRE_REV_MX | Max Tire Revs That Is Certified |
| RTAXLE_MNCLP | Min Axle Ratio For VID Block |
| RT_AXLE_MN | Min Axle Ratio That Is Certified |
| VID_NOV_MN | Min N/V For VID Block |
| VID_SPD_LMT_MIN | Min VSS Limit For VID Block Kph |
| TIRE_MNCLP__A | Min Tire Revs For VID Block |
| TIRE_REV_MN | Min Tire Revs That Is Certified |
| VID_SPD_LMT_HP | Switch To Use VID For VSS Limiting |
The public preview intentionally does not display raw addresses, offsets, data sizes, scaling values or other underlying definition information. The complete mapping is included with the purchased definition.
ADDITIONAL BLACK OAK INFORMATION
Additional Black Oak research and platform information can also be made available for projects that require more than the calibration parameters themselves.
Memory region information and identified areas of the Black Oak ECU memory layout.
Additional information about how the Black Oak binary is organized and where different types of data are located.
Additional research into the Black Oak ECU architecture, calibration structure and related binary information.
Need an XDF, DAMOS or another finished definition format? Custom definition work is available separately.
INSIDE THE DEFINITION
BEFORE YOU PURCHASE
This product is a professional calibration definition and research reference for the Ford Black Oak 1472K CAN platform. It is not a Ford PCM binary, stock calibration, modified calibration, flashing tool or standalone tuning application.
The delivered definition contains the mapped calibration information needed to identify and work with the parameters contained within the supported Black Oak files.
The information is intentionally provided in a format that is useful beyond a single tuning application. You can use it to create an XDF, DAMOS, A2L-style definition, WinOLS project or another definition format depending on your workflow.
Each mapped scalar and table has been manually mapped and checked. Hundreds of hours have been invested into researching, locating, identifying and verifying the calibration information contained in this definition.
Because Black Oak binaries and strategies can differ, always verify that your specific binary matches a supported strategy before making calibration changes.
Ford Black Oak 1472K CAN
Get the Ford Black Oak 1472K CAN calibration definition from Trent's Tuning and start your project with thousands of manually mapped and checked calibration locations already identified.
Buy Definition - $600
