INSIDE THE DEFINITION

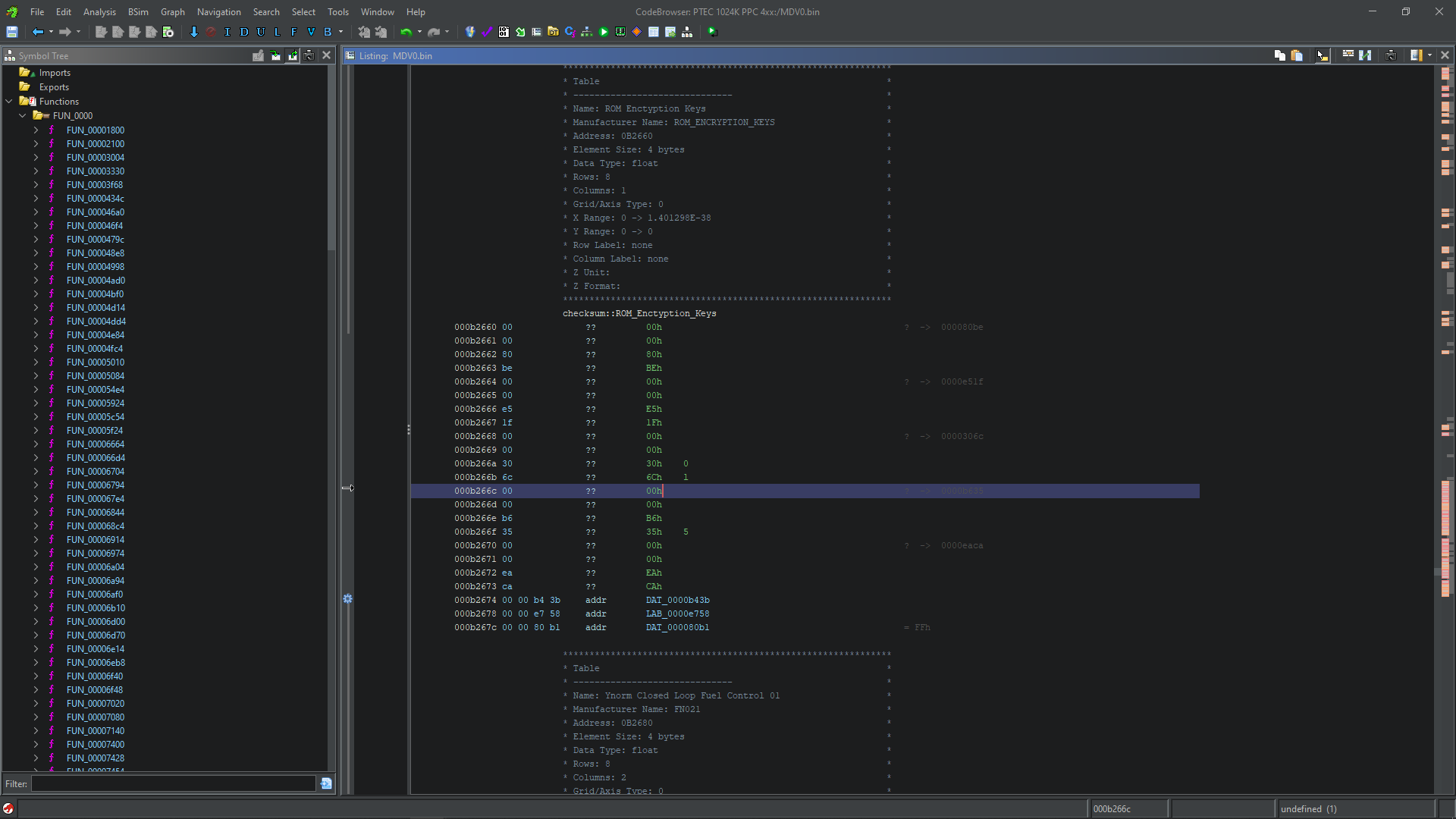

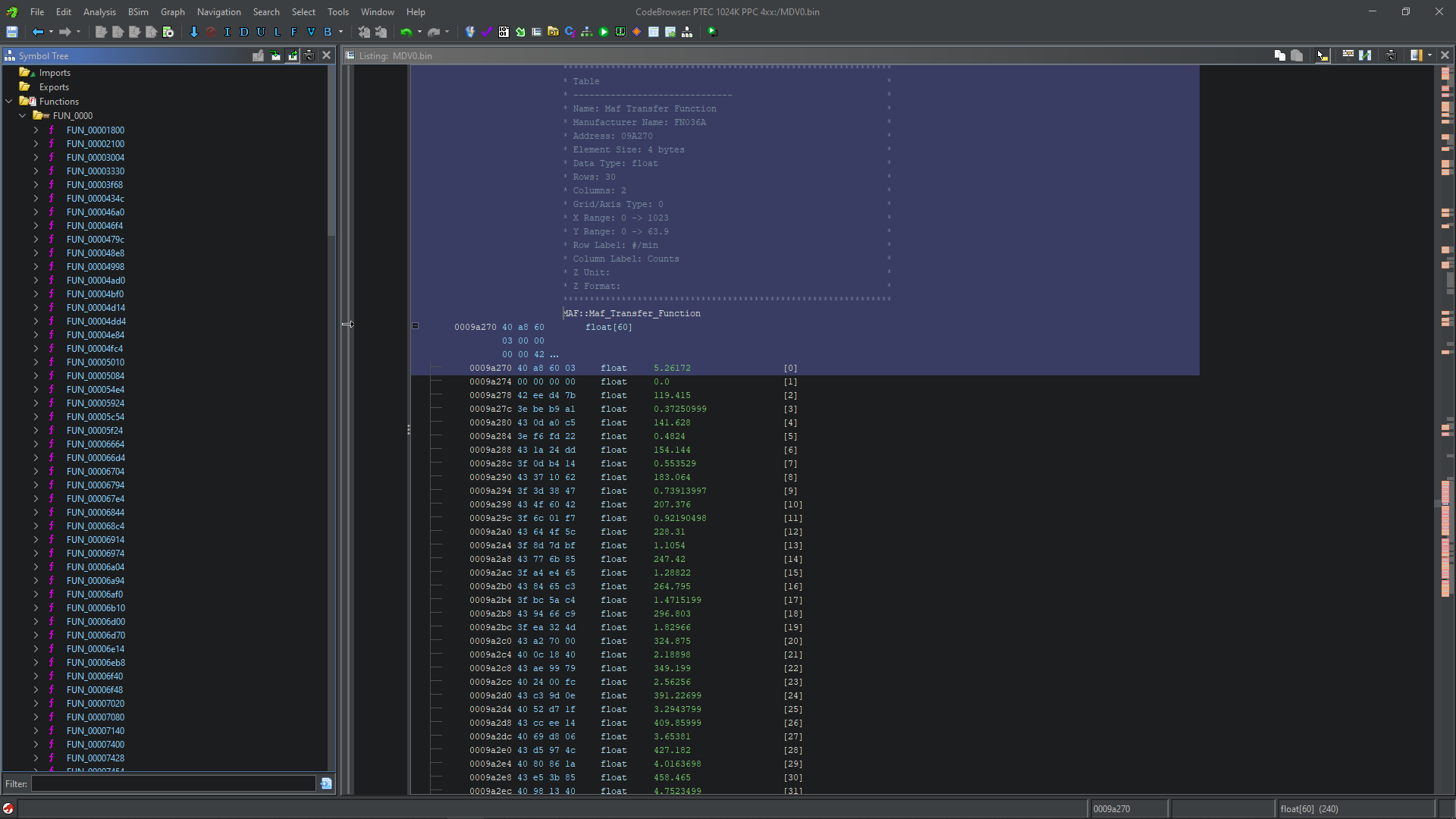

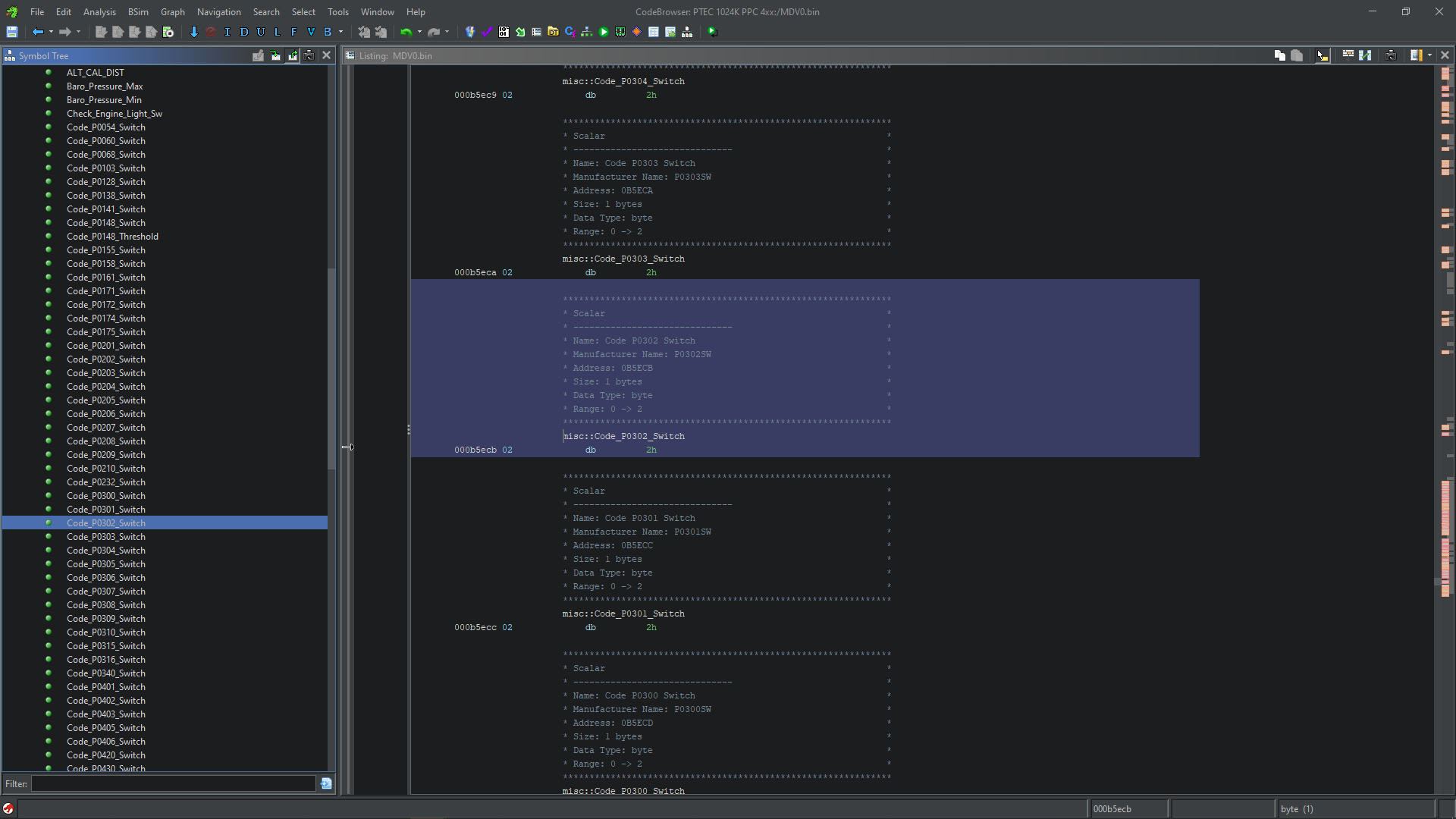

Definition Screenshots
FORD PTEC • 1024K
Professional calibration definition • Version 1.0
A large Ford PTEC 1024K calibration definition containing nearly 1,900 manually mapped and checked parameters. Built as a reference for tuning, calibration development, definition creation, binary analysis and reverse engineering.
Buy Definition - $600THE DEFINITION
The Ford PTEC 1024K platform contains a substantial amount of calibration and control data spread throughout the PCM firmware. Finding, identifying and correctly interpreting that information from scratch can take an enormous amount of time.
This definition contains nearly 1,900 mapped calibration parameters organized into useful categories. The definition includes scalars, tables, switches, constants, parameters and other identified calibration data.
The mapping was built through manual research and reverse engineering of PTEC 1024K firmware. Parameters are located, analyzed and checked rather than simply being generated from an automated address scan.
Thousands of hours of research and development have gone into understanding Ford calibration structures, locating calibration data, identifying parameters, checking addresses and building this definition into a practical foundation for further work.
A large collection of identified PTEC 1024K calibration locations gives you a substantial head start when working with compatible Ford PCM binaries.
Parameters have been manually located, analyzed and checked. The goal is useful, accurate calibration information rather than simply generating thousands of automatically detected addresses.
The mapped information can be used as the foundation for creating your own XDF, DAMOS, A2L-style definition, WinOLS project or another calibration format supported by your workflow.
Use the mapped information while analyzing PTEC firmware, following code references, identifying calibration structures and understanding how the PCM is organized.
Where identified, the definition includes useful information such as parameter names, data types, dimensions, conversions, scaling and other calibration details.
USE THE DATA YOUR WAY
The definition is provided as calibration data and reference information rather than being locked to one specific tuning application. Use the mapped information to build or work with the format that makes sense for your project.
COMPATIBILITY
Any Ford vehicle and calibration strategy using the PTEC 1024K PCM platform is supported. The definition is not limited to a fixed list of strategy IDs.
DEFINITION PREVIEW
Browse the categories and parameters included in the definition. This public preview shows the category, manufacturer parameter name and readable name while keeping the underlying calibration data private.
